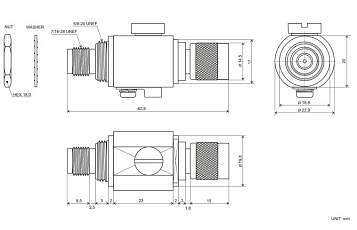

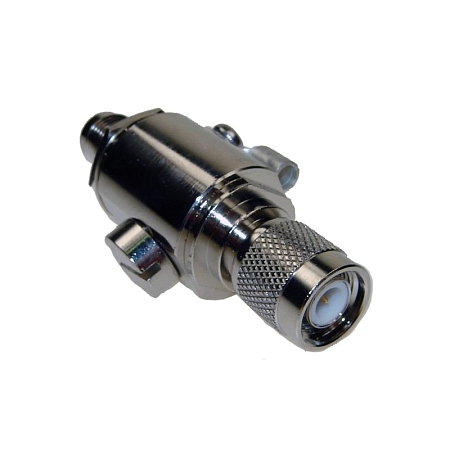

Lightning arrestor TNC(m)-TNC(f)
A lightning arrester is a device that protects electrical equipment and devices from damage by electrical surge and direct and indirect lightning strikes.
Compatible with TNC (m) and TNC (f) RF connectors.
A reliable lightning arrester is designed for broadband use 0-6 GHz, insulation resistance is ≥ 10000 MΩ.
Features:
• Frequency range: 0-6 GHz
• VSWR: 1:1.5
• Insertion loss: 0.8 dBi
• Impedance: 50 Ω
• Insulation resistance: ≥ 10000 MΩ
• Max withstand current: 20 A
• Gas tube impulse breakdown voltage: ≤ 700 V
• Tolerance on the breakdown voltage: DC 230 V ± 20%
• RF power rating: 15 W
Technical parameters can be found in the attached datasheet.
