Numer katalogowy : AO-SFT-03
Producent: SECTRON

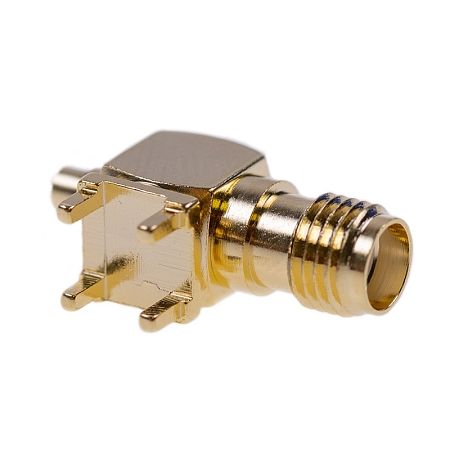

Connector SMA(f) R/A BH cable straight, THD

Numer katalogowy : AO-SFT-03
Producent: SECTRON

Connector SMA(f) R/A BH cable straight, THD

Connector SMA R/A is designed for mounting and soldering to the panel.

15.09 PLN (3.46 €) z VAT (23%) / szt.

bez VAT 12.47 PLN / szt.

Cena od 10 sztuk 2.14 €

Cena od 100 sztuk 1.79 €

Na magazynie < 10 szt.
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Connector SMA(f) R/A BH cable straight, THD

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

This connector is designed intended for coaxial cable type THD.

Material and finish:

• Body: brass / gold-plated nickel
• Cover: brass / gold-plated nickel
• Insulator: teflon / -
• Ferrule: brass / gold

Parameters:

• Type: Female (f)
• Impedance: 50 Ω
VSWR: <1.3
• Maximum frequency: 0-18 GHz
• Insulation resistance: 1 000 MΩ
• Center contact resistance: 3 mΩ
• Outer contact resistance: 2 mΩ
• Working voltage: 500 V rms
• Mating cycles: 500
• Operating temperature: - 65 °C to + 165 °C
• Weight: 4 g

Technical parameters can be found in the attached datasheet or contact our sales department.

Parametry

Impedance 50  Ohm Temperatura robocza -65 ~ +165  °C
Maksymalny VSWR <1.16:1 Zakres częstotliwości 18  MHz
Napięcie pracy 500  V

15.09 PLN (3.46 €) z VAT (23%) / szt.

bez VAT 12.47 PLN / szt.
