Omnidirectional WiFi antenna

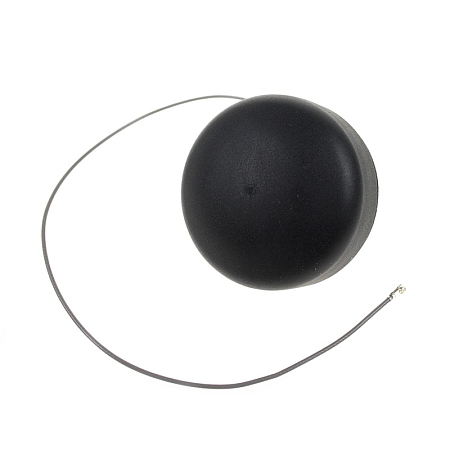

Omnidirectional WiFi antenna working in band 2.4 GHz. It is suitable for connection to cellular routers, for example in cars, where it can be placed on the roof of the vehicle thanks to the IP67 degree of protection. The antenna is supplied with 30cm cable with UF.L connector. The surface of the antenna is specially treated with multi-layer rubber protective coating. The case is characterized by high vandalism and wind resistance.
Connector specifications U.FL:
U.FL connectors are used in cases where there is very little space for connecting / interconnecting RF components eg in wireless communication devices, electronic measuring instruments, mobile phones, GPS and wireless LANs. Gold-plated central contact of the U.FL connector improves its properties. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz.
Connector specifications Hirose 088:
The Hirose 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.
Technical parameters can be found in the attached datasheet.
