Omnidirectional WiFi Magnetic antenna

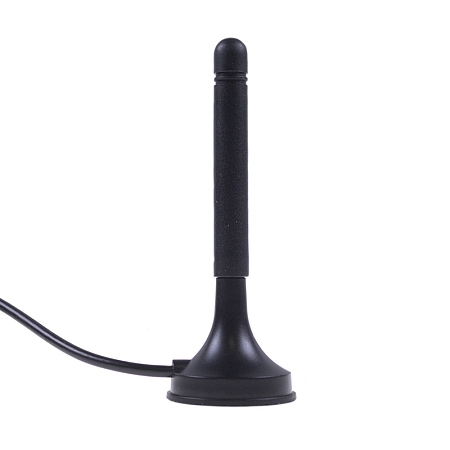

The omnidirectional WiFi magnetic antenna operates in a band 2.4 GHz. It is ideal for use in homes and offices. The base consists of a magnetic base with a diameter of 29.7 mm, thanks to which the antenna is suitable for placement on any metal substrate. The omnidirectional antenna is supplied with a 1.5 m long RG174 / U cable, terminated with an SMA-RP (f) connector, which allows connection to modems and cellular routers, for example.
Connector specifications SMA:
These are high-frequency connectors with screw connection mechanisms. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.
Cable specifications RG174 / U:
The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.
Technical parameters can be found in the attached datasheet.
