Numer katalogowy : AW-A24G-M5SRP
Producent: SECTRON

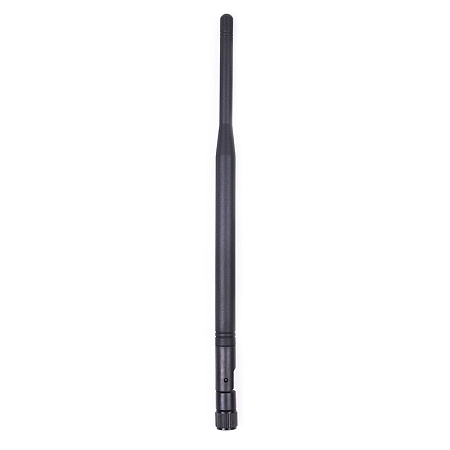

Antenna WiFi Connector Mount M5SRP, 2.4 GHz, 5 dBi, RP-SMA (pin f)

Numer katalogowy : AW-A24G-M5SRP
Producent: SECTRON

Antenna WiFi Connector Mount M5SRP, 2.4 GHz, 5 dBi, RP-SMA (pin f)

Omnidirectional interior antenna with a gain of 5 dBi, working in 2.4 GHz band and is suited for receiving/transmitting Wi-Fi signal.

41.62 PLN (9.55 €) z VAT (23%) / szt.

bez VAT 34.40 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional interior WiFi antenna

Omnidirectional interior antenna with a gain of 5 dBi, working in 2.4 GHz band and is suited for receiving/transmitting Wi-Fi signal. The antenna is primarily suited for households. It operates well with routers and modems. It has an RP-SMA(pin f) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Złącze RP-SMA(f)
Maksymalna moc wejściowa 10  W Polaryzacja Liniowy
Wykonanie Zewnętrzny Temperatura robocza -20 ~ +60  °C
Wymiary 170 x 26.4  mm , 10 x 186  mm Kierunkowość Dookólna
Technologia WIFI Waga 15.1  g
Zysk 5  dBi VSWR <2.0:1
Kąt nadawania H 180 V 10 Sposób mocowania Magnetyczne

41.62 PLN (9.55 €) z VAT (23%) / szt.

bez VAT 34.40 PLN / szt.
