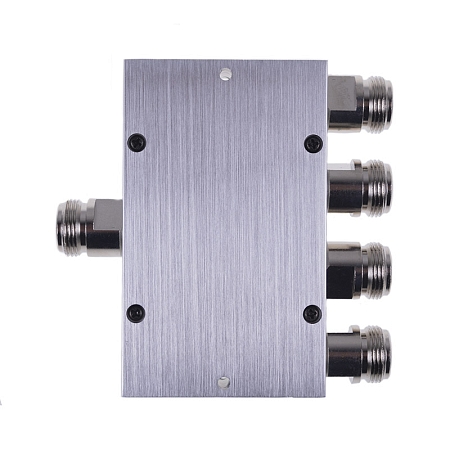

Splitter Coupler (800-2500 MHz) with 4 outputs
The broadband splitter with four outputs is equipped with four N (f) type connectors. Suitable for branching from one coaxial branch into four coaxial branches and thus allowing the connection of multiple devices.
Thanks to its robust construction and the use of N(f) type connectors, the antenna splitter is also suitable for professional applications where minimal signal loss and high resistance to external influences are important.
Features:
• Frequency: 800 - 2500 MHz
• VSWR: 1.35 : 1 (max)
• Impedance: 50 Ohm
• Divider Factor: 1 : 4
• Divider Loss: 6 dB
• Temperature range: -40 °C až +90°C
• Dimensions: 29 × 11.4 × 11.6 mm
• Low Insertion Loss
Specifications connector N:
A connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.
Technical parameters can be found in the attached datasheet.
