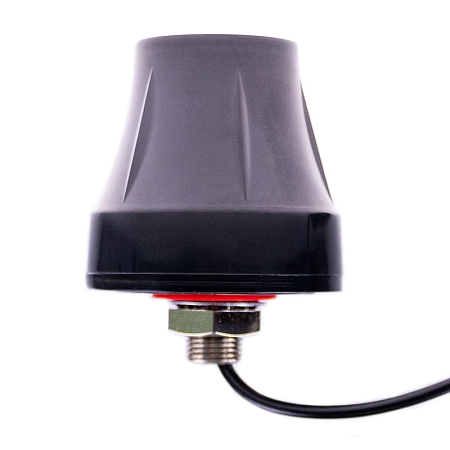

Antenna LTE Screw Mount G058, SMA(m) 90°, RG316/1.5m , Durable UV resistant ABS

Numer katalogowy : AO-ALTE-G058 /Producent: SECTRON

ao-alte-g058

35.95 PLN (7.65 EUR) bez VAT

Na życzenie Kiedy otrzymam towar?

gwarancja 24 miesięcy
Przedmiot*
Imię i nazwisko*
E-mail*
Zapytanie*
Odsyłając formularz zgadzasz się z zasadami ochrony danych osobowych. .
Twoje imię i nazwisko*
Twój E-mail*
Wysłać na E-mail*
Wiadomość*
Odsyłając formularz zgadzasz się z zasadami ochrony danych osobowych. .

Opis

Omnidirectional GSM/UMTS/LTE antenna

Omnidirectional antenna for GSM/UMTS/LTE technologies. The antenna operates in bands 700/800/900/1800/1900/2100/2600 MHz. It is suited for modems/routers. Thanks to IP67, this antenna is suitable for outdoor use. It is supplied with 1.5 cm cable RG316 with SMA (m) 90° connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors are guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG316:

RG316 coaxial low-loss high-frequency cable that is compatible with connectors applicable to a cable with the outer diameter of 2.49 mm. The frequency range is 0 - 3 GHz. The RG316 cable is often used in radio frequency and telecommunication applications, for the transmission of high frequency signals, and also in wireless devices. It is suitable for applications that require good performance and stability in high temperature environments. The operating temperature of this cable is -55 to + 200 ° C. The shortening factor is set to 0.7. There are also specially modified RG316 for outdoor use, which are UV resistant, as well as for use in extreme conditions. It is made of different materials and different qualities.

Technical parameters can be found in the attached datasheet.


Parametry

Impedancja: 50 Ohm Kabel: RG316/U
Złącze: SMA(m) Maksymalna moc wejściowa: 10 W max.
Polaryzacja: Lineárni Wykonanie: Zewnętrzny
Temperatura pracy: -40 °C - +85 °C Wymiary: 63 x 50 mm
Kierunkowość: Směrová Stupeň krytí: IP67
Technologia: GSM / UMTS / LTE Waga: 144 g
VSWR: <2.3:1 Kąt nadawania: H 60° V 75°
Zysk: 4 dBi Sposób mocowania: Śrubowe
