Numer katalogowy : AO-AGSM-MG6N
Producent: SECTRON

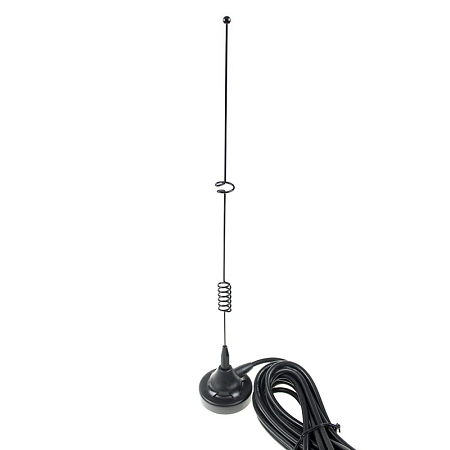

Antenna GSM/UMTS Magnet Mount MG6, 6 dBi, N(m), RG58/5m

Numer katalogowy : AO-AGSM-MG6N
Producent: SECTRON

Antenna GSM/UMTS Magnet Mount MG6, 6 dBi, N(m), RG58/5m

Omnidirectional antenna for GSM technology. The antenna operates in frequency bands 900/1800/2100 MHz.

72.22 PLN (16.50 €) z VAT (23%) / szt.

bez VAT 59.68 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional GSM antenna

Omnidirectional antenna a gain 6 dBi for GSM technology. The antenna operates in frequency bands 900/1800/2100 MHz. The antenna is suited for modems/routers. It is supplied with 5 m cable RG58  with N(m) connector. The antenna base can have a magnetic base.

Connector specifications N(m):

Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Connector specifications RG58:

The RG58 coaxial cable is compatible with connectors applicable to a 5 mm cable diameter. It is mainly used for the 0-1 GHz frequency range, it can also be used for higher frequencies, but at the cost of higher attenuation. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 75 ° C. This cable is suitable for external WiFi / GPS / GSM antennas. It is also often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / N / SMA / TNC and others.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG58/U
Złącze N(m) Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -40 ~ +85  °C Wymiary 50 x 331  mm
Kierunkowość Dookólna Technologia GSM
Waga 301.81  g Zysk 6  dBi
VSWR <2.0:1 Kąt nadawania H 360 V 30
Sposób mocowania Magnetyczne

72.22 PLN (16.50 €) z VAT (23%) / szt.

bez VAT 59.68 PLN / szt.
