Numer katalogowy : AO-ALTE-TG09-W
Producent: SECTRON

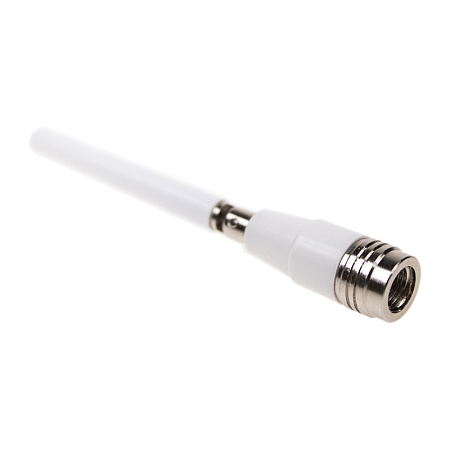

Antenna LTE Connector Mount TG09W, 90°/180°, 2 dBi, SMA(m), White

Numer katalogowy : AO-ALTE-TG09-W
Producent: SECTRON

Antenna LTE Connector Mount TG09W, 90°/180°, 2 dBi, SMA(m), White

Omnidirectional the antenna suitable as receiver of signal in GSM/UMTS/LTE. The antenna operates in bands 700/800/900/1700/1800/2100/2600/2700 MHz.

42.07 PLN (9.56 €) z VAT (23%) / szt.

bez VAT 34.77 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional GSM/UMTS/LTE antenna

Omnidirectional the antenna with connector SMA (m) is suitable as receiver of signal in GSM/UMTS/LTE. The antenna operates in bands 700/800/900/1700/1800/2100/2600/2700 MHz. It is suited for modems and routers. This antenna is in white.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Złącze SMA(m)
Maksymalna moc wejściowa 10  W Polaryzacja Liniowy
Wykonanie Zewnętrzny Temperatura robocza -20 ~ +80  °C
Wymiary 71.5 x 10  mm Kierunkowość Dookólna
Technologia GSM , GPS , UMTS , LTE Waga 8.34  g
Zysk 2  dBi VSWR <3.5:1
Sposób mocowania Wtyk Orzecznictwo RoHS

42.07 PLN (9.56 €) z VAT (23%) / szt.

bez VAT 34.77 PLN / szt.
