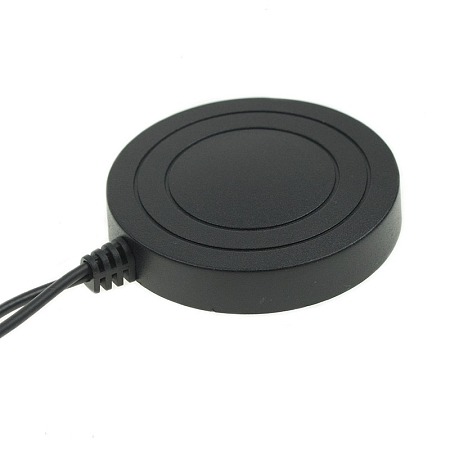

Omnidirectional combined GSM/GPS/GLONASS antenna
Omnidirectional combined adhesive antenna for GSM/GPS/GLONASS. The antenna operates in bands 900/1800/2100/1575.42/1602 MHz. The antenna reaches up to 27 dBi gain when combined with an amplifier. The antenna is suitable for cars. Comes with 3M double-sided tape for easy mounting on glass or plastic.
Specifications cable RG174/U:
The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.
More information can be found in the attached datasheet.
