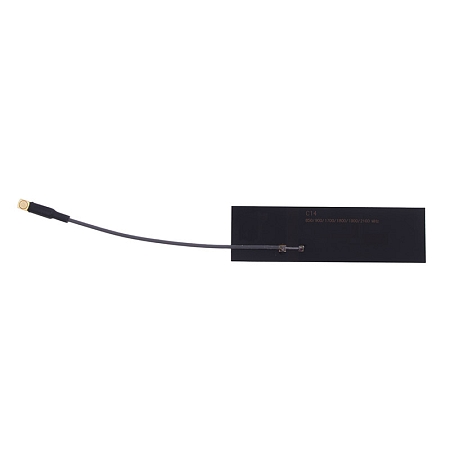

Omnidirectional internal GSM/UMTS antenna
Omnidirectional internal flexible antenna is suitable for usage with GSM/UMTS technologies. The antenna operates on 850/900/1700/1800/1900/2100 MHz frequency. It is suited for modems/routers. This antenna has an MMCX (m) 90 ° connector. Łatwy montaż anteny zapewnia taśma 3M.
Connector specifications MMCX:
These are coaxial connectors with a latch mechanism, which are compatible with MCX connectors, but have a smaller size. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 6 GHz. Operating temperature range -65 °C to + 165 °C. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.
Cable specifications RF 1.37:
The RF 1.37 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices. There are also specially modified types of RF 1.37 cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.
More information can be found in the attached datasheet.
