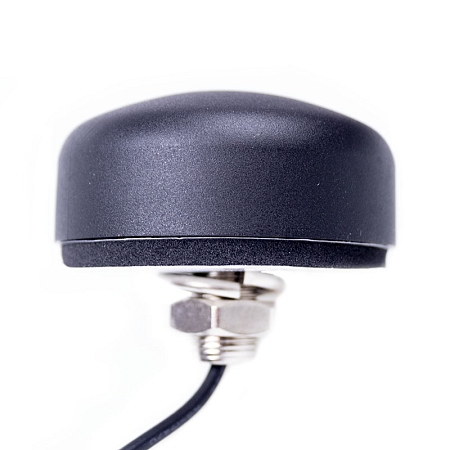

Omnidirectional mounting GSM antenna
Omnidirectional mounting antenna for GSM technologies. The antenna operates in bands 800/900/1700/1800/1900/2100 MHz. It is suited for modems/routers. It is supplied with RG174 cables with a length of 5 m, with an open end.
Cable specifications RG174:
The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.
Technical parameters can be found in the attached datasheet.
