Numer katalogowy : AO-AGSM-CAP
Producent: SECTRON

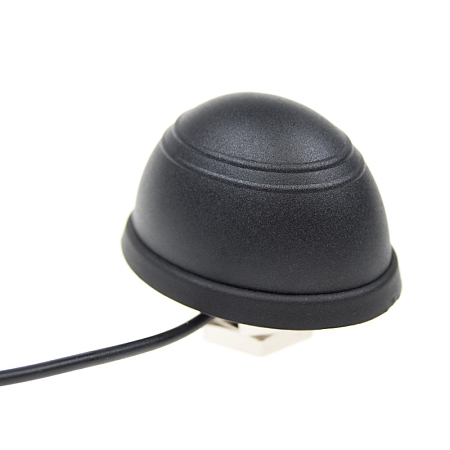

Antenna GSM Mounting R32, FME(f), RG174U/5m

Numer katalogowy : AO-AGSM-CAP
Producent: SECTRON

Antenna GSM Mounting R32, FME(f), RG174U/5m

Omnidirectional antenna for GSM technology. The antenna operates in frequency bands 900/1800/2100 MHz.

85.56 PLN (19.55 €) z VAT (23%) / szt.

bez VAT 70.71 PLN / szt.

Na magazynie < 10 szt.
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional GSM antenna

Omnidirectional antenna for GSM technology. The antenna operates in frequency band 900/1800/2100 MHz. Roof mounting GSM antenna is suited for cellular modems/routers. The GSM roof mounting antenna is used in vehicles to connect to cellular modems and routers or to signal repeaters. It is supplied with 5 m cable with FME (f) connector.

Connector specifications FME:

FME coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 2 GHz. Thanks to their compact size and long longevity, the FME connectors are used in the field of mobile communications as well as for GSM antennas. They are suitable for installation in vehicles as well.

Cable specifications RG174/U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze FME(f) Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -30 ~ +90  °C Wymiary 53 x 49 x 38  mm
Technologia GSM Waga 122  g
Zysk 0  dBi VSWR <2.5:1
Kąt nadawania H-300 V-30 Sposób mocowania Śrubowe

85.56 PLN (19.55 €) z VAT (23%) / szt.

bez VAT 70.71 PLN / szt.
