Numer katalogowy : AO-AGSM-SMVS1
Producent: SECTRON

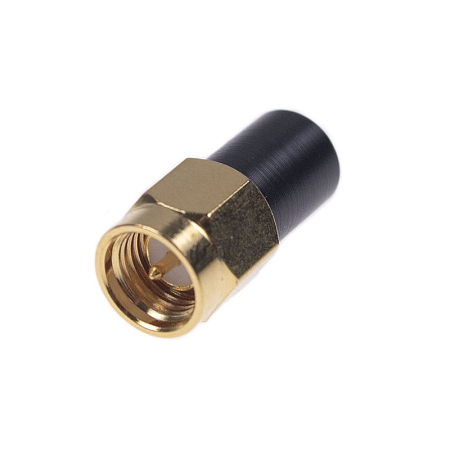

Antenna GSM Connector Mount MINI SMVS, 180°, 2 dBi, SMA(m)

Numer katalogowy : AO-AGSM-SMVS1
Producent: SECTRON

Antenna GSM Connector Mount MINI SMVS, 180°, 2 dBi, SMA(m)

Omnidirectional internal antenna for GSM technologies. The antenna operates in bands 900 MHz. It is suited for industrial modems/routers.

15.08 PLN (3.47 €) z VAT (23%) / szt.

bez VAT 12.46 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional internal GSM antenna

Omnidirectional internal antenna with connector SMA (m) for GSM technologies. Antenna length 17.8. mm operates in the 900 MHz band. It is suited for industrial modems and routers.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

More information can be found in the attached datasheet.


Parametry

Impedance 50  Ohm Złącze SMA(m)
Maksymalna moc wejściowa 10  W Polaryzacja Liniowy
Wykonanie Zewnętrzny Temperatura robocza -30 ~ +90  °C
Wymiary 17.8 x 9.1  mm Kierunkowość Dookólna
Technologia GSM Waga 2.78  g
Zysk 2  dBi VSWR <1.3:1
Kąt nadawania H 360 V 30 Sposób mocowania Wtyk
Orzecznictwo ISO 9001 , ISO 14001

15.08 PLN (3.47 €) z VAT (23%) / szt.

bez VAT 12.46 PLN / szt.
