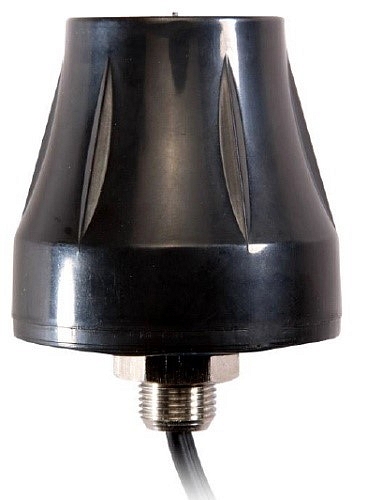

Omnidirectional LTE antenna
Omnidirectional LTE antenna for GSM/UMTS/LTE/Wi-Fi technologies. The antenna operates in bands 700/800/900/1800/1900/2100/2400/2600/2700 MHz. It is suited for modems/routers. Thanks to IP67, this antenna is suitable for outdoor use. The antenna is supplied with cable RG316 a length 1.02 m, open end.
Cable specifications RG316:
RG316 coaxial low-loss high-frequency cable that is compatible with connectors applicable to a cable with the outer diameter of 2.49 mm. The frequency range is 0 - 3 GHz. The RG316 cable is often used in radio frequency and telecommunication applications, for the transmission of high frequency signals, and also in wireless devices. It is suitable for applications that require good performance and stability in high temperature environments. The operating temperature of this cable is -55 to + 200 ° C. The shortening factor is set to 0.7. There are also specially modified RG316 for outdoor use, which are UV resistant, as well as for use in extreme conditions. It is made of different materials and different qualities.
Technical parameters can be found in the attached datasheet.
