Numer katalogowy : AO-AKOM-E604LMWM
Producent: SECTRON

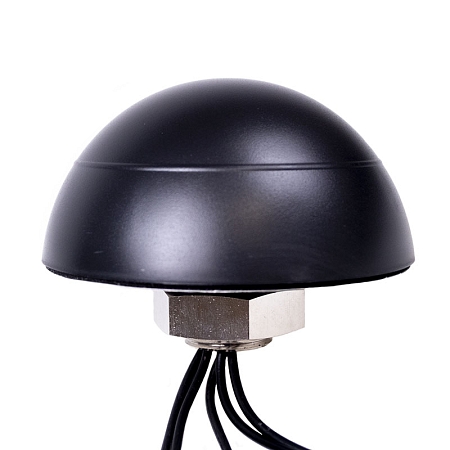

Antenna LTE MIMO/GNSS/WiFi MIMO Screw Mount E604, 5x RG174/3m, 3x SMA, 2x RP-SMA(f pin)

Numer katalogowy : AO-AKOM-E604LMWM
Producent: SECTRON

Antenna LTE MIMO/GNSS/WiFi MIMO Screw Mount E604, 5x RG174/3m, 3x SMA, 2x RP-SMA(f pin)

Combined mounting MIMO antenna designed for GSM/UMTS/LTE /Wi-Fi/GPS technologies. The antenna operates in bands 700/800/900/1700/1800/2100/2600 MHz 2,4/5 GHz 1574.42/1602 MHz.

354.70 PLN (80.51 €) z VAT (23%) / szt.

bez VAT 293.14 PLN / szt.

Na magazynie < 10 szt.
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional antenna for GSM/UMTS/LTE /Wi-Fi/GPS

Combined mounting MIMO antenna designed for GSM/UMTS/LTE /Wi-Fi/GPS technologies. The antenna operates in bands 700/800/900/1700/1800/2100/2600 MHz 2,4/5 GHz 1574.42/1602 MHz. Using the so-called MIMO technology (Multiple Input, Multiple Output) and suitable positioning of the antennas, the resulting system achieves higher transmission rates. The antenna can be used in M2M as well as in IoT devices and systems. The IP67 degree of protection makes it suitable for outdoor use. The antenna system is supplied with five 3 m RG174/U cables with SMA (m) connectors.

Cable specifications RG174/U:

The cable labelled RG174/U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.

It is most often used for creating cable adaptors with connectors such as BNC/FAKRA/FME/MCX/MMCX/N/SMA/SMB/SMP/TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS/GSM/WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi/2G/3G/LTE/GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze SMA(m) , RP-SMA(f) Maksymalna moc wejściowa 10  W
Napięcie 3 – 5 V DC Polaryzacja Liniowy , R.H.C.P
Wykonanie Zewnętrzny Temperatura robocza -20 ~ +60  °C
Wymiary 110 X 50  mm Kierunkowość Dookólna
Technologia GSM , UMTS , GNSS , WIFI , LTE Waga 523.45  g
Zysk 3  dBi VSWR <3.0:1
LNA Zysk 28  dB Sposób mocowania Śrubowe
Stopień ochrony IP IP67
