Omnidirectional mounting GSM antenna

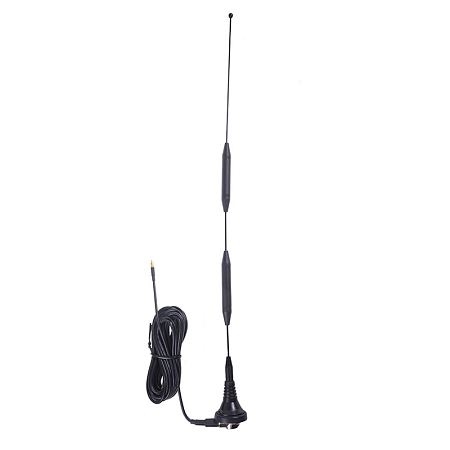

Omnidirectional mounting antenna for GSM technologies. The antenna operates in bands 806/960 MHz. This type of antenna is most commonly used in conjunction with cellular modems, routers and terminals. The cable RG174/U with a length of 2 m is attached to the antenna, which is terminated with MMCX (m) connector.
Connector specifications MMCX:
These are coaxial connectors with a latch mechanism, which are compatible with MCX connectors, but have a smaller size. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 6 GHz. Operating temperature range -65 °C to + 165 °C. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.
Cable specifications RG174/U:
The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.
Technical parameters can be found in the attached datasheet.
