Numer katalogowy : AP-AGNSS-30S
Producent: SECTRON

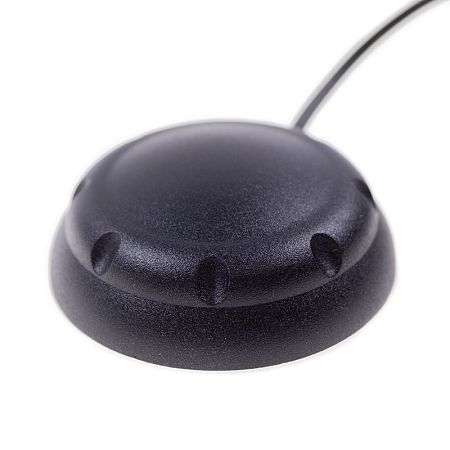

Antenna GPS/GLONASS Adhesive 30, SMA(m), RG174/3m

Numer katalogowy : AP-AGNSS-30S
Producent: SECTRON

Antenna GPS/GLONASS Adhesive 30, SMA(m), RG174/3m

Omnidirectional antenna for GPS and GLONASS. The antenna operates in two bands 1545.72 and 1602 MHz.

101.34 PLN (23.00 €) z VAT (23%) / szt.

bez VAT 83.75 PLN / szt.

Zapytani
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional GPS/GLONASS antenna

Omnidirectional antenna for GPS and GLONASS. The antenna operates in two bands, 1545.72 and 1602 MHz. The antenna reaches up to 30 dBi gain when combined with an amplifier. It is ideal for use in cars and other vehicles for the operation of navigation, tracking devices, electronic logbooks and other devices. Is suitable for sticking to glass. It is supplied with 3 m cable with SMA(m) connector. Easy installation is ensured by double-sided 3M tape.

Specifications cable RG174/U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Specifications connector SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

More information can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze SMA(m) Maksymalna moc wejściowa 10  W
Napięcie 2.5 - 5.5 V DC Polaryzacja R.H.C.P.
Wykonanie Zewnętrzny Temperatura robocza -30 ~ +80  °C
Wymiary 50.5 x 17  mm Kierunkowość Dookólna
Technologia GPS , GLONASS Waga 67  g
Zysk 3  dBi VSWR <1.42:1
LNA Zysk 27  dB Kąt nadawania H 360 V 30
Sposób mocowania Przyklejana

101.34 PLN (23.00 €) z VAT (23%) / szt.

bez VAT 83.75 PLN / szt.
