Antenna 5G MIMO Screw Mount

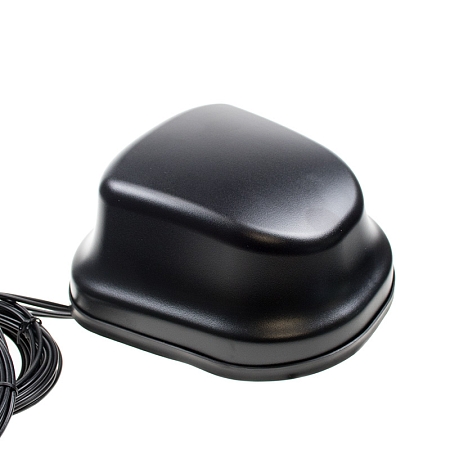

Combined mounting MIMO antenna designed for GSM/UMTS/LTE/5G signal reception. The antenna operates in the bands 698-960 / 1710-2690/2900-3800 MHz. It is adjusted and ready for the upcoming 5G technology. Using the so-called MIMO technology and suitable positioning of the antennas, the resulting system achieves higher transmission rates than in the case of the existing LTE technology. The antenna can be used in M2M as well as in IoT devices and systems. The IP67 degree of protection makes it suitable for outdoor use. The antenna system is supplied with four 3 m RG174/U cables with SMA (m) connectors.
Cable specifications RG174 / U:
The cable labeled RG174 / U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 ° C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.
Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties
Technical parameters can be found in the attached datasheet.
