Teltonika WiFi Access Point TAP200, PoE
The WiFi Access Point TAP200 is Teltonika Networks' improved Access Point (AP), ideal for enhancing coverage and sharing of WiFi signal in homes, offices, restaurants, small manufacturing halls, public spaces and other places. A WiFi Access Point is a device that enables wireless data transfer between different devices and the Internet. Access point (Access point) TAP200 supports up to 8 separate SSIDs and up to 100 simultaneous connections with a speed of up to 450 Mb/s.
WiFi Access Point allows devices such as smartphones, laptops, computers, tablets or televisions to connect to the internet without the need of cables. The advantage of the WiFi Access Point TAP200 is the ease of installation and configuration.

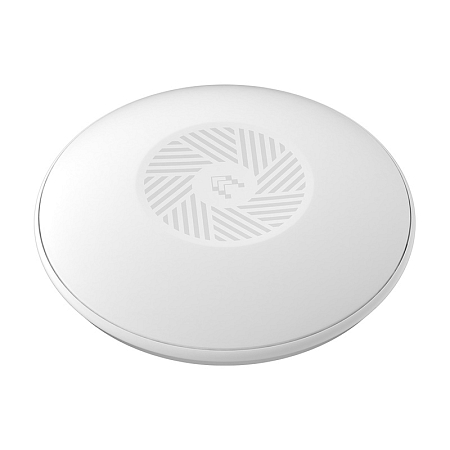

The TAP200 Access Point is housed in an elegant plastic casing that is stabilized against UV radiation, so the device will retain its color even in continuous direct sunlight. An integrated mounting bracket allows an easy installation on the ceiling.
This improved Teltonika TAP200 access point model is equipped with four internal antennas. 2× omnidirectional antenna for the 2.4 GHz frequency and 2× for the 5 GHz frequency. The Internet connection is provided by an RJ45 connector.
Thanks to the PoE-in function, the Teltonika TAP200 can be powered directly from a connected device that provides it with data connection via Ethernet. This is for devices that support active PoE, such as the Teltonika TSW200 PoE+ industrial switch, or any network device with a PoE injector. In the case that the router does not support PoE, a PoE injector is put between the router and the Access Point. At the same time the PoE injector works as a power source. This eliminates the need for additional power supplies and cables, and also reduces the complexity of the setting.
The 15W PoE Injector is not included in the GM-TAP200 packaging.
The PoE Injector is included in the GM-TAP200-POE packaging.
With the purchase of the Teltonika TAP200 Access Point, you will get for 24 months free access to the Teltonika Remote Management System (RMS), which allows remote management and monitoring of all Teltonika network devices. The system allows you to change the configuration and collect status information on individual devices, even if the devices do not have public IP addresses.
Parameters:
• 2× internal antennas for 2.4 GHz WiFi (omnidirectional)
• 2× internal antennas for 5 GHz WiFi (omnidirectional)
• 1× port RJ45 10/100/1000 Mb/s
• WiFi Dual-Band (b/g/n/ac)
• Input voltage range: 44.0 - 57.0 V
• Operating temperature: 40 °C to 75 °C
• Degree of protection: IP30
• Dimensions: Ø 158 mm × 30 mm
• Weight: 190 g
• RAM 256 MB
• CPU 880 MHz
Included:
• Access Point Teltonika TAP200
• QSG (Quick Start Guide)
• Wi-Fi information sticker
Topology of network fot TAP200 - example
VIDEO Introduction of the Access Point Teltonika
Quick Start Guide
The Quick Start Guide video guides you step-by-step through setting up the device from unpacking the box and logging into the administration.
