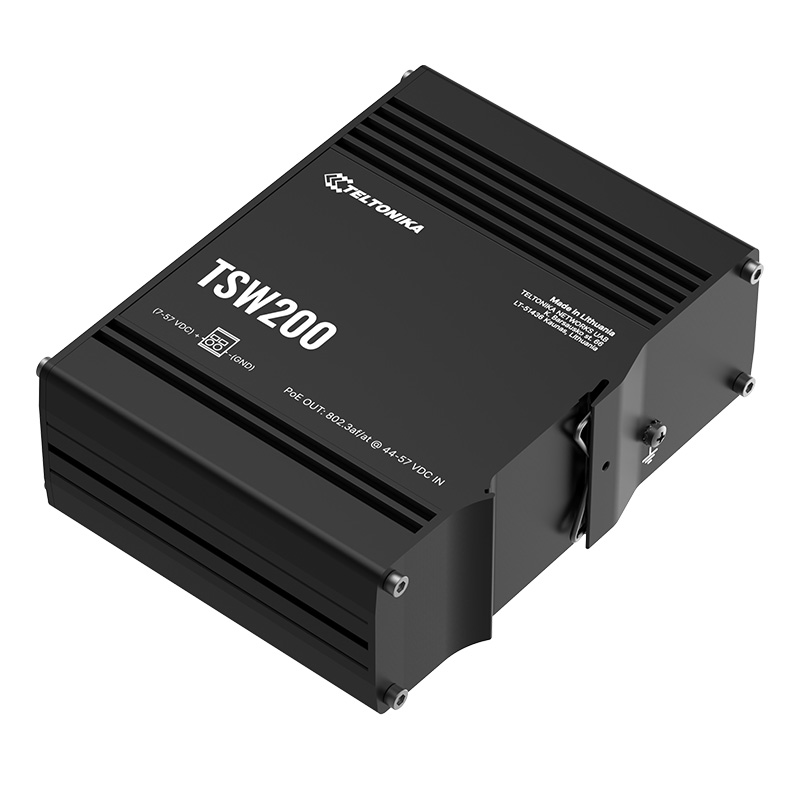

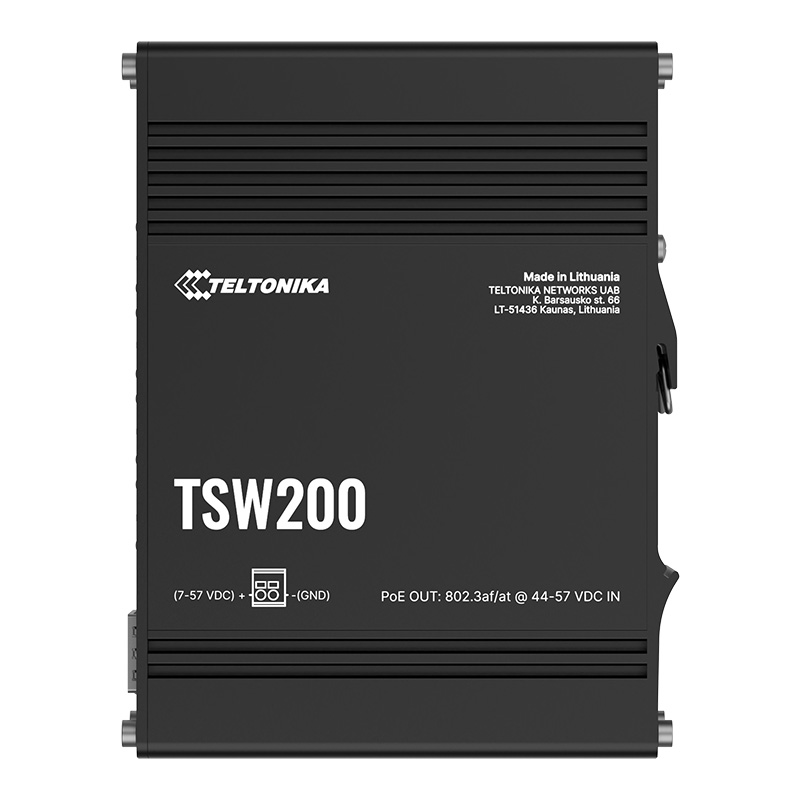

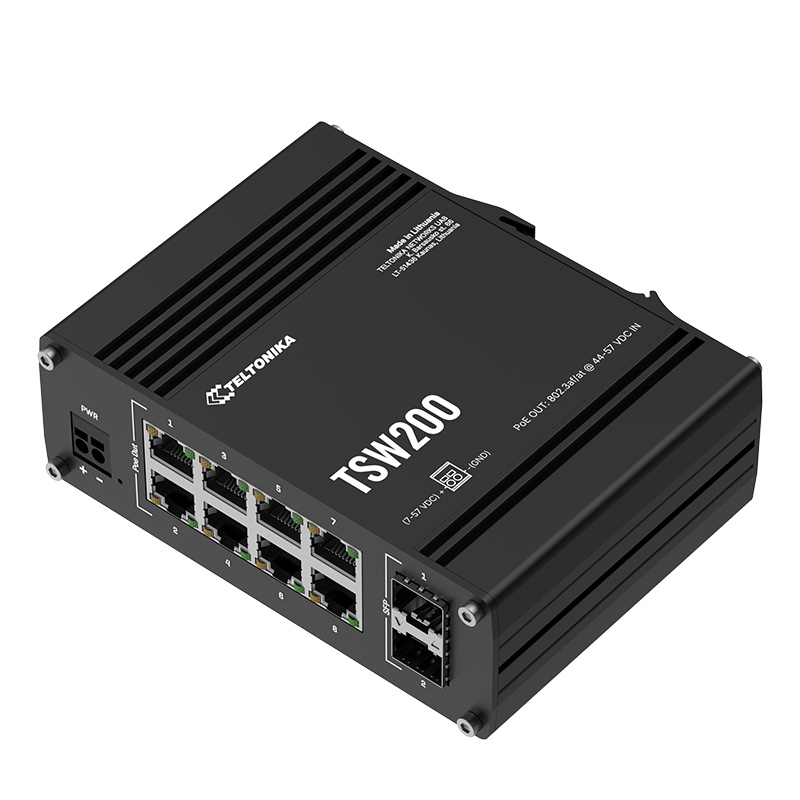

Teltonika TSW200 Ethernet Switch
Teltonika TSW200 - industrial Ethernet PoE switch is equipped with two SFP ports for connecting optical cables and eight Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. This robust industrial switch Teltonika TSW200 provides central power up to 240 W (one port up to 30 W).
Teltonika TSW200 is characterized by an industrial design and a durable aluminum chassis that protects the device from external influences. With compact dimensions of 132 x 44.2 x 95.1 mm and a weight of only 456 grams, it is ideal for deployment and use in industrial environments with limited space.
Teltonika TSW200 is ideal for professional high-bandwidth applications where a reliable data connection and PoE power supply are required.
Features:

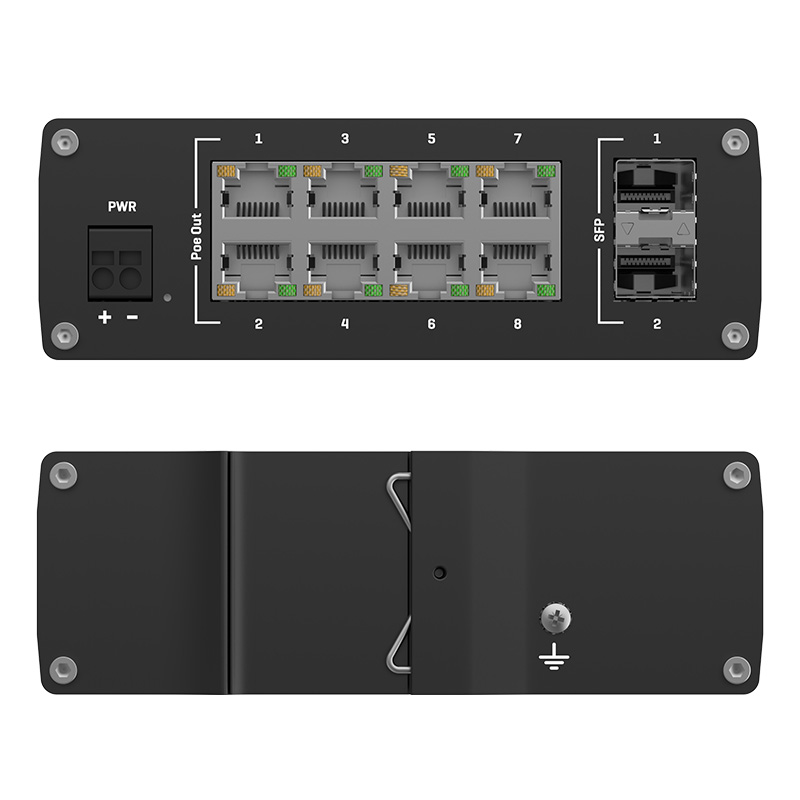

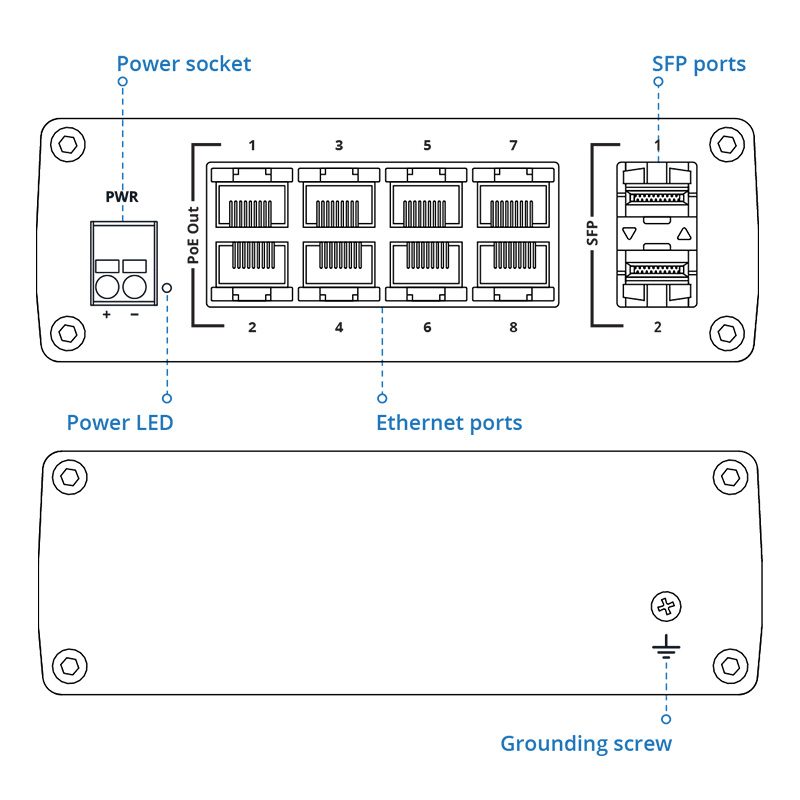

• 2 x SFP ports
• 8 x Gigabit Ethernet with speeds up to 1 000 Mbps
• Status LED 16 x Ethernet, 2 x SFP ports supply
• Ingress protection rating IP30
• Operating temperature -40 °C to 75 °C
• Aluminum housing with wall or DIN rail mounting option and grounding capability

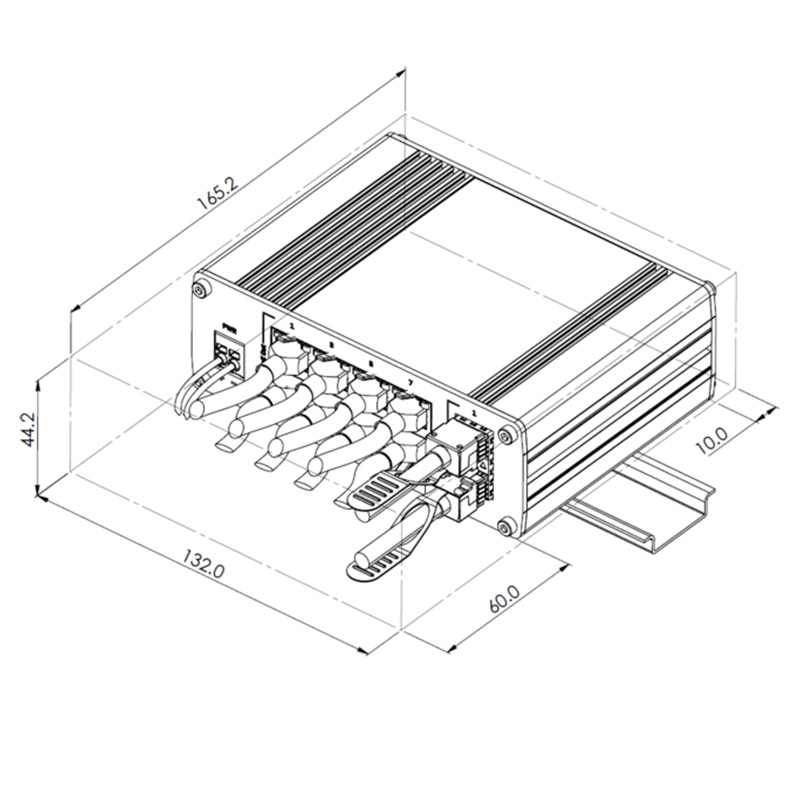

• Dimensions 132 x 44.2 x 95.1 mm
• Weight 456 g
Quick Start Guide Video
The Quick Start Guide video guides you step-by-step through setting up the switch.
Standard package contains:
• Switch Teltonika TSW200
• QSG (Quick Start Guide)
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet and quick manual.
