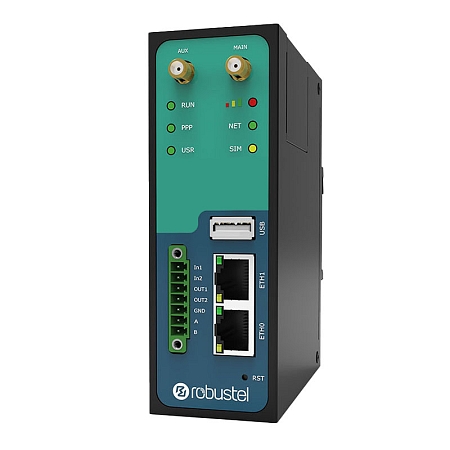

Industrial LTE Router Robustel R3000-4L, fw 3.0.31
The industrial Dual SIM router Robustel R3000-4L (fw 3.0.31) with 4G FDD LTE transmission technology offers an Ethernet interface and an intuitive web-based administration interface. Thanks to its supported 2G/3G/4G bands and dual SIM slot, it ensures fast and reliable internet connectivity, making it an ideal solution for M2M and IoT applications.
Examples of use
- Connecting industrial PLCs: The router enables secure remote access to PLC and HMI units, making it easier to manage production technologies and speed up diagnostics. This reduces the need for on-site service interventions while improving operational continuity and communication efficiency between the production area and the control centre.
- Water management: In the water and wastewater sector, the device is used for the reliable transmission of operational and telemetry data from pumping stations, water reservoirs, or treatment plants to supervisory SCADA systems. Remote monitoring simplifies maintenance, while redundant connectivity helps maintain operation even if the primary connection fails.
- Power distribution: In the energy sector, the router provides resilient communication connectivity for switchboards and substations, enabling secure data transmission, alarm handling, and remote monitoring of technologies. The Dual SIM function also increases connection availability and helps maintain communication even in the event of one operator’s outage.
Durable industrial design
The Robustel R3000-4L was designed for demanding operating conditions. Thanks to its rugged metal enclosure and wide operating temperature range, it is suitable for use in extreme environments such as industrial facilities, outdoor installations, and more. This router is an excellent choice for applications that require robust and reliable connectivity.
Advanced remote management and monitoring
The user-friendly interface and advanced tools make remote management significantly easier. Administrators can configure, monitor, and diagnose the device remotely, eliminating the need for physical site visits. The result is greater operational efficiency, less downtime, and savings in both time and resources.
RobustOS operating system
The R3000-4L LTE router uses the RobustOS operating system. This system is based on Linux and was developed specifically for Robustel devices, ensuring a high level of security and flexibility.
Key Features:
• Dual SIM redundancy for continuous cellular connections supports 2G/3G/4G
• WAN link management: cellular WAN/Ethernet WAN/WLAN WAN backup
• '>VPN tunnel: IPSec/OpenVPN/PPTP/L2TP/GRE
• Supports Modbus gateway (Modbus RTU/ASCII to Modbus TCP)
• Supports GPS&GLONASS (optional), provides real time location and tracking
• Supports 802.11 b/g/n Wi-Fi (optional), AP and client mode
• Supports SDK, provides user programmatic interface
• Supports 802.1Q VLAN Trunk. l Supports PPPoE Bridge(IP Passthrough)
• Auto reboot via SMS/Caller ID/Timing
• Supports RobustLink (Centralized M2M management platform, to a remote monitor, configure and update '>firmware)
• Supports RobustVPN (Cloud '>VPN Portal, to provide easy and secure remote access for PLCs and machines)
• Flexible Management methods: Web/CLI/SNMP/RobustLink
• '>Firmware upgrade via Web/CLI/USB/SMS/RobustLink
• Various interfaces: RS232/RS485/Console/DI/DO/USB/Ethernet
• Wide range input voltages from 9 to 60 VDC and extreme operating temperature
• The metal enclosure can be mounted on a DIN-rail or on the wall, also with the extra ground screw
Package included:
• 1x 3-pin connector
• 2x 7-pin connector
Antennas, Ethernet cable and power supply are not included.
SECTRON recommends to buy the following accessories:
AM-RT-FPOWR - Power supply 12V / 1A, L=1.4m, w/o connector, open end
FSMAK3 - Antenna GSM/UMTS/LTE FLAT Stick 90°/180°, 690-2700 MHz, 3 dBi, SMA(m)
FSMAK - Antenna GSM/UMTS/LTE FLAT Stick 90°/180°, 698-2700 MHz, 3 dBi, SMA(m)
ETH150-CAT5E - Ethernet cable CAT5e, RJ45/RJ45, Grey, 1.5m
*Optional accessories
AO-ALTE-MG9S - Antenna GSM/UMTS/LTE Magnetic 90, 5-9 dBi, SMA(m), 3m RG174 – (3m)
AO-ALTE-MG9S5 - Antenna GSM/UMTS/LTE Magnetic 5-9 dBi, SMA(m), 5 m RG174U-DS – (5m)
Product video
The product video will provide you with information about the features of the Robustel R3000 router and present specific examples of use.
Technical parameters can be found in the attached datasheet.
