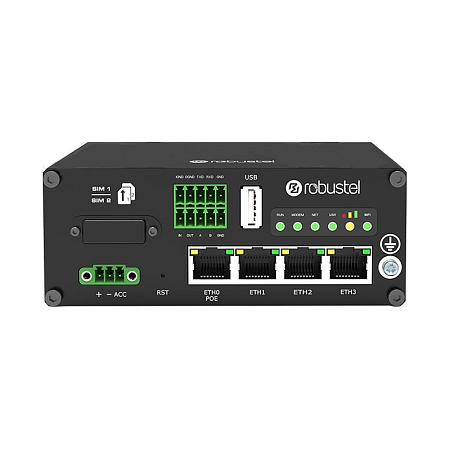

High-Performance Industrial LTE Router without Bluetooth Interface
Robustel R2110-4L, Cat 6 (with '>firmware version 3.1.0) is a robust cellular LTE Cat 6 router that provides reliable, high-speed mobile connectivity for IoT applications, smart cities, industrial environments, and transportation. This specific variant is supplied without a Bluetooth interface.
Comprehensive Connectivity and Serial Interfaces
The Robustel R2110 LTE router supports versatile network connectivity options, including 4G LTE Cat 6, Wi-Fi, and Ethernet.
RS-232 and RS-485 serial ports are also available for connecting industrial devices. This is a standard industrial configuration and, without additional software modification or development, is not intended for direct use in automotive applications.
Durable Design with IP30 Protection and DIN Rail Mounting
Thanks to its extensive feature set, rugged construction, and IP30-rated enclosure, this industrial router is designed for stable operation in demanding conditions. The device can be easily mounted on a DIN rail, significantly simplifying installation in engineering facilities, control cabinets, and industrial distribution systems.
RobustOS Operating System and SDK for Custom Application Development
Like other Robustel devices, the R2110 uses the Linux-based RobustOS operating system, which simplifies the implementation and development of custom software. The package includes a complete Software Development Kit (SDK) and full support for developing custom applications for large-scale IoT projects.
Key Features:
• 1Gbps faster ethernet port
• 802.11ac Wave1 dual 2.4G & 5GHz
• POE power supply for bottom equipment
• RS485&RS232 serial interface
• DI/DO trigger switch
• Supports WWAN, WAN, WLAN link backup and ICMP detection
• Supports cold backup , warm backup and load balancing
• RobustOS + SDK + App
• IPsec/OpenVPN/GRE
• Management and maintenance via Web/CLI/SNMP/RobustLink Cloud
• Robust industrial design (9 to 36V DC, desktop or wall mounting or DIN rail mounting)
Package included:
• 1x 3-pin connector
• 2x 5-pin connectors
Antennas, power supply and Ethernet cable are not included.
SECTRON recommends to buy the following accessories:
AM-RT-FPOWR - Power supply 12V / 1A, L=1.4m, w/o connector, open end
AM-R3000-L-MRT - R3000-Litepower connector 3-pin
FSMAK3 - Antenna GSM/UMTS/LTE FLAT Stick 90°/180°, 690-2700 MHz, 3 dBi, SMA(m)
FSMAK - Antenna GSM/UMTS/LTE FLAT Stick 90°/180°, 698-2700 MHz, 3 dBi, SMA(m)
AP-AGNSS-A002S - Antenna GPS/GLONASS Adhesive 002, SMA(m), RG174/3m
AM-RT-ETH150-CAT5E - Ethernet cable CAT5e, RJ45/RJ45, Grey, 1.5m
*Optional accessories
AO-ALTE-MG9S - Antenna GSM/UMTS/LTE Magnetic 90, 5-9 dBi, SMA(m), 3m RG174 – (3m)
AO-ALTE-MG9S5 - Antenna GSM/UMTS/LTE Magnetic 5-9 dBi, SMA(m), 5 m RG174U-DS – (5m)
Product Video
The product video will provide you with information about the features of the Robustel R2110 router and present specific examples of use.
More information can be found in the attached datasheet.
