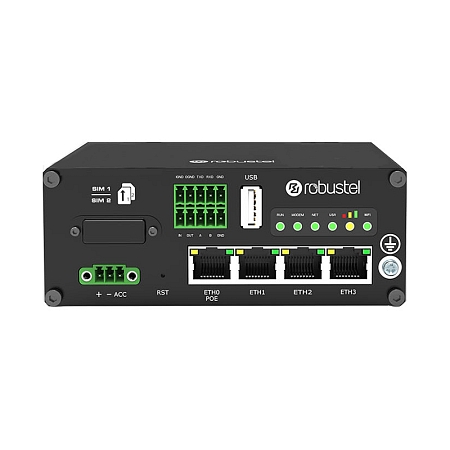

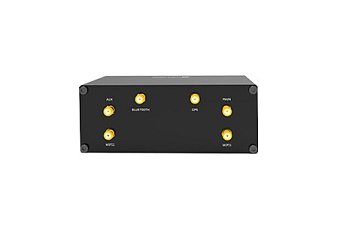

High-Performance Industrial LTE Router for IoT
Robustel R2110-4L, Cat 6 is a robust cellular LTE router with Wi-Fi, offering state-of-the-art mobile connectivity for the Internet of Things (IoT), smart cities, industrial environments, and transportation. This 4G LTE Cat 6 router supports a wide range of connectivity options, including Ethernet, Wi-Fi, and high-speed mobile internet.
Reliable 4G LTE Connectivity with '>Firmware 3.1.0
Robustel R2110-4L is a reliable LTE router designed for stable, high-speed data transmission in demanding applications. The device is supplied with '>firmware version 3.1.0.
Note: This is a standard industrial configuration and, without additional software modification (development), is not intended for direct integration into automotive applications.
Durable Industrial Design with DIN Rail Mounting
Thanks to its extensive feature set, rugged design, and IP30-rated enclosure, this industrial router is built for reliable operation in demanding conditions. The device can be easily mounted on a DIN rail, significantly simplifying installation in control cabinets, engineering facilities, and other industrial equipment.
RobustOS Operating System and SDK for Custom Applications
Like other Robustel devices, the R2110-4L uses the Linux-based RobustOS operating system. It simplifies the implementation and development of specialised software solutions. A complete software development kit (SDK) and full support for developing custom applications for large-scale IoT projects are included.
Key Features:
• 802.11ac Wave1 dual 2.4G & 5GHz
• GNSS GPS/GLONASS/BeiDou/Galileo
• POE power supply for bottom equipment
• Ethernet: 3× LAN (10/100/1000 Mbps), 1× WAN (10/100/1000 Mbps)
• RS485&RS232 serial interface
• DI/DO trigger switch
• Bluetooth Low-power communication
• Supports WWAN, WAN, WLAN link backup and ICMP detection
• Supports cold backup , warm backup and load balancing
• RobustOS + SDK + App
• IPsec/OpenVPN/GRE
• Management and maintenance via Web/CLI/SNMP/RobustLink Cloud
• Robust industrial design (9 to 36V DC, desktop or wall mounting or DIN rail mounting)
Package included:
• 1x 3-pin connector
• 2x 5-pin connector
Antennas, power supply and Ethernet cable are not included.
SECTRON recommends to buy the following accessories:
AM-RT-FPOWR - Power supply 12V / 1A, L=1.4m, w/o connector, open end
AM-R3000-L-MRT - R3000-Litepower connector 3-pin
FSMAK3 - Antenna GSM/UMTS/LTE FLAT Stick 90°/180°, 690-2700 MHz, 3 dBi, SMA(m)
FSMAK - Antenna GSM/UMTS/LTE FLAT Stick 90°/180°, 698-2700 MHz, 3 dBi, SMA(m)
AP-AGNSS-A002S - Antenna GPS/GLONASS Adhesive 002, SMA(m), RG174/3m
AM-RT-ETH150-CAT5E - Ethernet cable CAT5e, RJ45/RJ45, Grey, 1.5m
*Optional accessories
AO-ALTE-MG9S - Antenna GSM/UMTS/LTE Magnetic 90, 5-9 dBi, SMA(m), 3m RG174 – (3m)
AO-ALTE-MG9S5 - Antenna GSM/UMTS/LTE Magnetic 5-9 dBi, SMA(m), 5 m RG174U-DS – (5m)
Product Video
The product video will provide you with information about the features of the Robustel R2110 router and present specific examples of use.
More information can be found in the attached datasheet.
