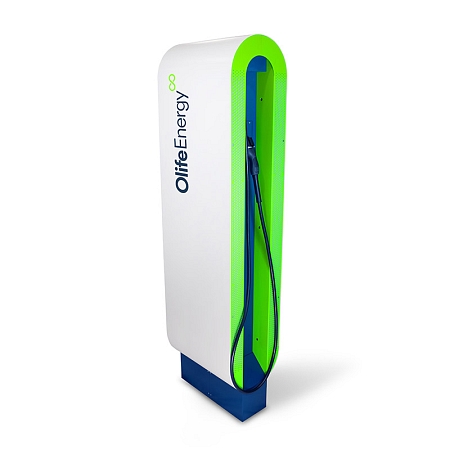

Olife Energy Stand charging station AC 2x22kW - SMART
Charge two electric cars at the same time from one floor-standing station. OlifeEnergy SMART offers two Type 2 cables, up to 22 kW per vehicle and the option to start charging using RFID.
Key features:
- Czech product
- Ideal charging station for use in businesses
- RFID authorization
- OlifeEnergy AC Cloud services (remote monitoring, management, control and charging of charging stations)
- Charging station configuration via mobile application (local Bluetooth)
- Dynamic control of the station's performance using the OlifeEnergy SmartMeter unit
A subsidy from the Czech Nová zelená úsporám programme can be obtained towards an OlifeEnergy charging station. More information is available in the Nová zelená úsporám (NZÚ) category.
AC charging stations are a key infrastructure for charging electric vehicles in companies and public places. These stations use alternating current (AC) and are designed to enable convenient, safe and efficient charging of electric vehicles.
Olife Energy AC charging station SMART
Olife Energy AC charging station SMART made in the Czech Republic. This charging station for electric vehicles charges with alternating current. It includes two cables with plugs. A big plus of the station is that it can charge two electric vehicles at the same time, each with a power of up to 22 kW.
Power and charging time
The battery charging time is 1 - 3 hours and offers a maximum power of 22 kW. The charging speed is determined not only by the battery capacity, but mainly by the charging power of the on-board charger in the vehicle. Manufacturers most often equip them with chargers with a power of 11 kW, but there are also lower 7 kW or, conversely, 22 kW.
Methods of starting and controlling charging
Charging can start automatically after inserting the connector into the vehicle, or after identification with an RFID card (RFID chip). The charging process can also be controlled remotely via the OlifeEnergy Cloud service, or using the OCPP protocol. The station is in a robust metal design.
Uses and smart functions of the SMART station
The SMART charging station variant is suitable for operation in company parking lots, shopping centers and places with high penetration of electric vehicles. The electric vehicle charging station is equipped with a power limitation function to prevent overloading of the electrical distribution system. To shorten the charging time, the station can divide the power between two charging vehicles according to their needs.
Charging control
The total power consumption of the station can be dynamically regulated using the external module OlifeEnergy SmartMeter SMART, which can control the performance of multiple Smart units simultaneously. It ensures optimal use of the capacity of the electrical connection by measuring the current consumption of the station or its sub-circuit and evaluating the available power input for the OlifeEnergy charging station. The station then regulates the charging current according to the available power input.
Installation services
SECTRON holds a certified professional qualification for installing electric vehicle charging stations.
Specifications charging station AC - SMART:
- Design: Free-standing heavy duty stand
- E.V. connection: Cable with plug (IEC 62196-2)
- Plugs: 2 x Type 2
- Control: Local – automatic or RFID, Remote – OlifeEnergy Cloud
- AC Input: AC3 + N + PE 400V 50 Hz, TN-SAC3 + PEN 400V 50 Hz, TN-C
- Input voltage: 400 VAC (50Hz)
- Input current: 0–63 A
- Overcurrent protection: 2 x 3-pole circuit breaker 32 A
- Residual protection: 2 x 4-pole Type A residual-current device 40 A
- Communication: OlifeEnergy Cloud, OCPP-J, 1.6, 2.0
- Data connection: Ethernet, USB (GSM, Wi-Fi)
- Operating temperature: -25 °C to 40 °C
- Operating humidity: 5 % to 95 %
- Dimensions: 2000 x 560 x 380 mm
- Weight: 110 kg
- Charging mode: 3 according to ČSN 61851-1
- Charging output power: 2 x 22 kW
- Residual DC current detection according to IEC 62955
EXTENSION MODULES OLIFEENERGY CLOUD:
Hardware modules which extend functionality of the OlifeEnergy AC charging station. A Platform for remote monitoring, management and client charging. The Platform offers multiple services which can be combined.
Remote monitoring
Basic service for remote communication with the charging station. The user is informed about status and energy consumption including history data. With the Remote monitoring service, the charging station is presented in OlifeEnergy Net charging network for free.
Remote monitoring facilitates diagnostics and servicing. The service includes a SIM card with the flat-rate payment for the GSM module.
Access control
This service allows management of RfIDuser chips and smartphone application user management. A List of all individual charging sessions (user, time and consumed energy) data is available for the charging station owner with this service.
The session records can be used to allocate costs in a housing cooperative or monitor company costs.
Payment system
This service allows the OlifeEnergy AC charging station owner to define the fee for station operation. The Charging station is advertised in OlifeEnergy Net charging network.
Power control
A Load-Balancing service for advanced control of the charging station. If there is not enough power to charge the E.V., or E.V. fleet, consumption of the charging station(s)can be controlled based on specific maximum withdraw limit(weak grid) or dynamically (based on maximum consumption of the building in a certain time frame).
Stations share the available power according to utilisation or configured priorities. For example, five 22 kW stations can share one 3 × 32 A circuit breaker. Information about available power can be supplied automatically by the building measurement and control system (MaR). The service prevents the agreed quarter-hour maximum power demand from being exceeded and can reduce fixed payments for the main breaker or reserved capacity, as well as penalties for exceeding the agreed limits.
OlifeEnergy charging station is offered in BASE and SMART variants. The comparison of both variants is in the table below.
| Feature | BASE | SMART |
|---|---|---|
| Circuit breaker protection | Yes | Yes |
| Charging up to 44 kW | Yes | Yes |
| RFID authorisation | Yes | Yes |
| Cloud, OCPP authorisation | — | Yes |
| Charging fees | — | Yes |
| Charging-session records | — | Yes |
| Integration with an internal system | — | Yes |
| Listing on the charging-station map | — | Yes |
| Smartphone control | — | Yes |
| Power control* | 2 EVs | unlimited EVs |
* Power control is provided by an external SmartMeter module.
Technical parameters can be found in the attached datasheet.
