Omnidirectional ISM antenna

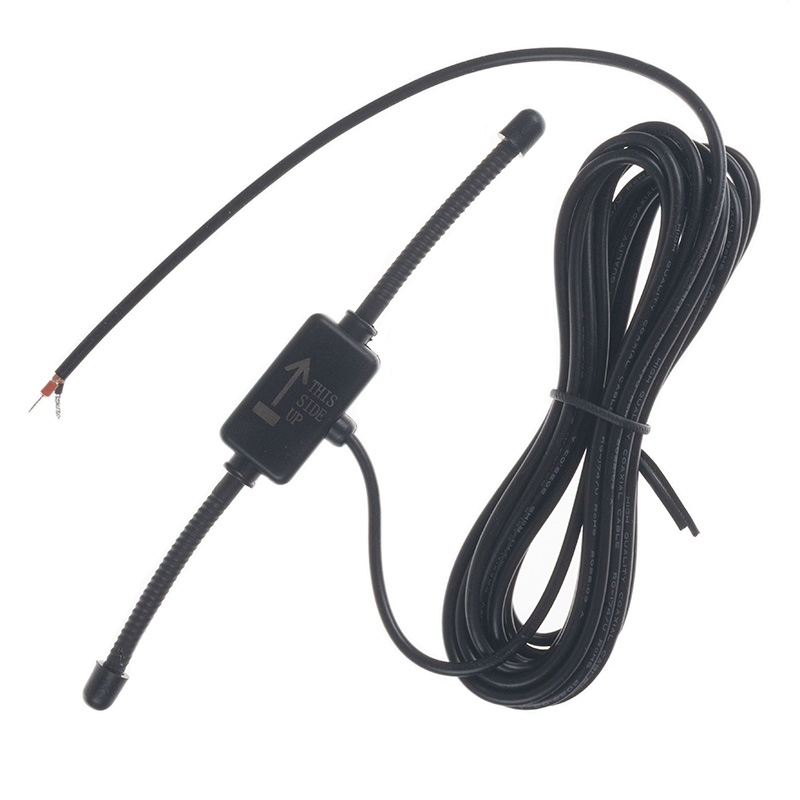

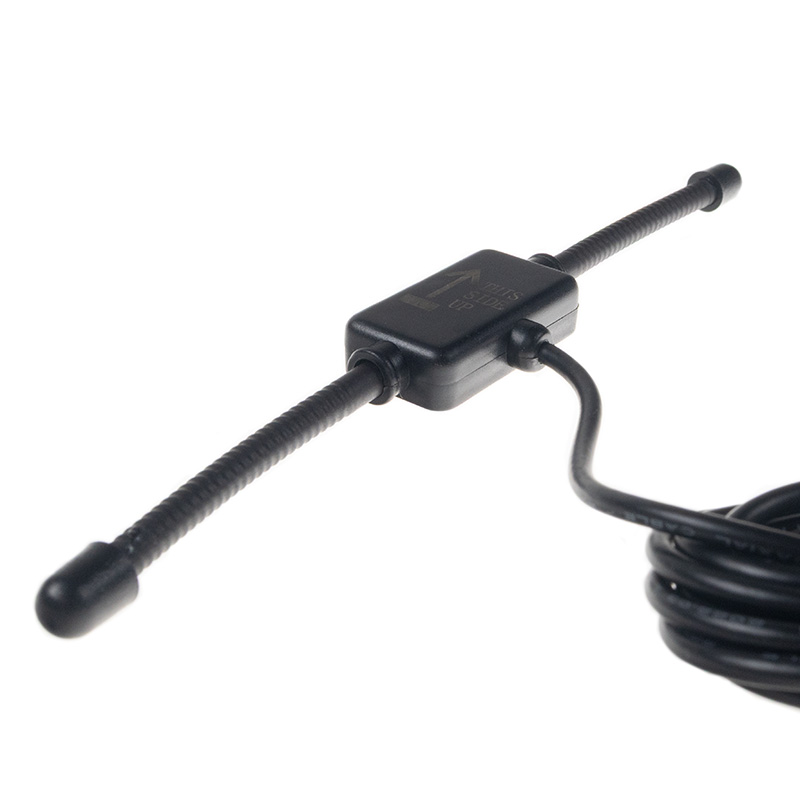

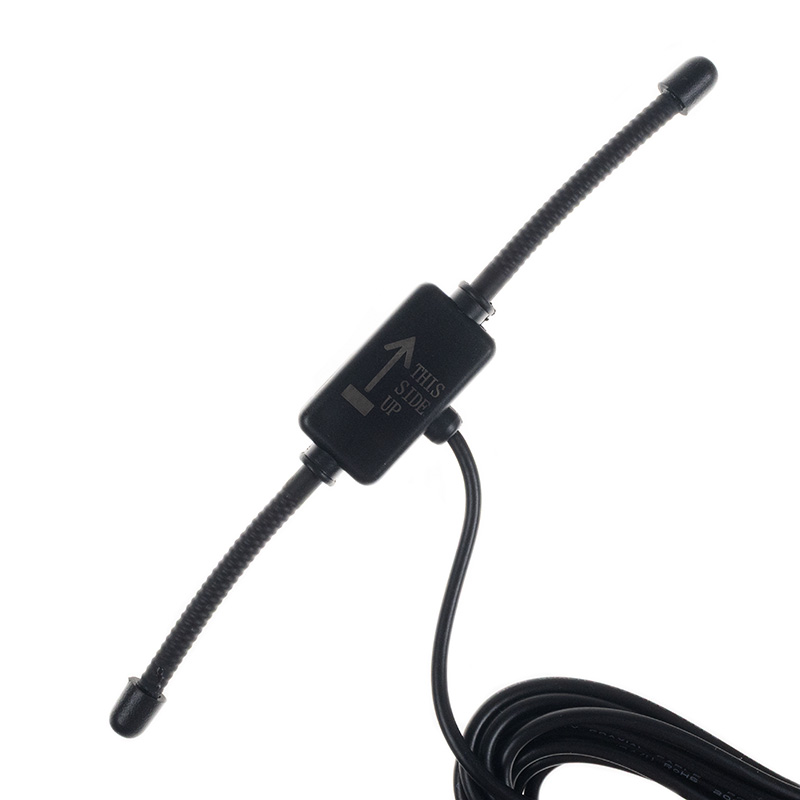

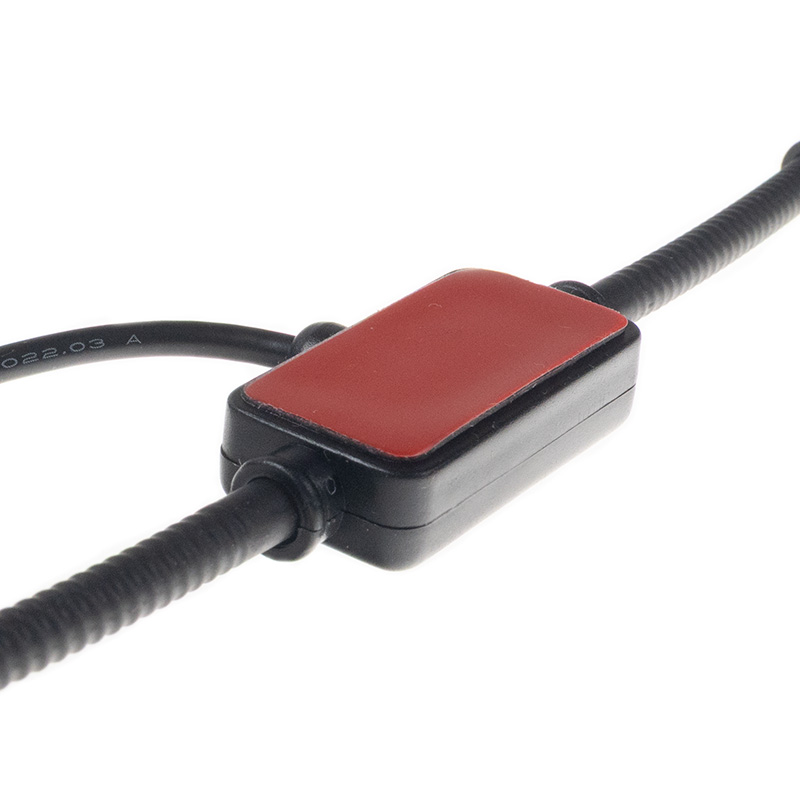

An omnidirectional antenna with an open end or an optional connector is designed for signal reception in ISM technology. It operates in the 433 MHz band. The antenna can be part of your industrial device, for example, for remote monitoring, smart metering, and specialized radio systems. The antenna is equipped with a 3-meter RG174/U coaxial cable. It is supplied with double-sided 3M tape, which ensures easy installation.

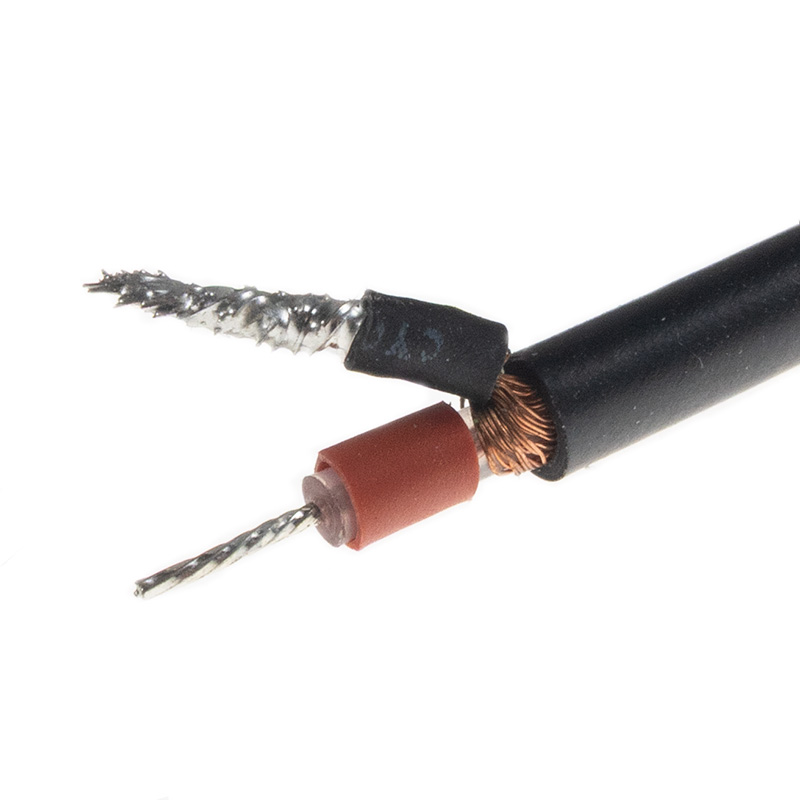

Connector cable RG174/U:
The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.
Technical parameters can be found in the attached datasheet.
