Numer katalogowy : AP-AGPS-TMM-5VS
Producent: Trimble
Kod produktu: 66800-40

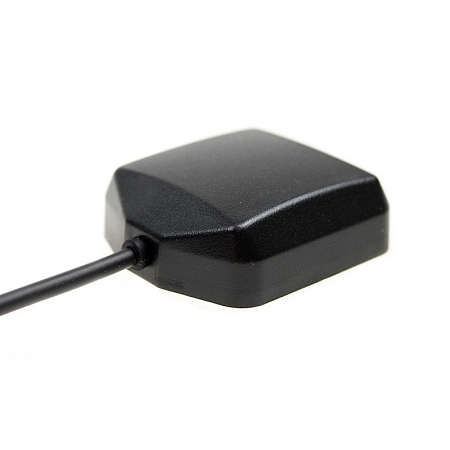

Trimble GPS Antenna Magnetic Mount, 5V, SMA(m), RG174/5m (66800-40)

Numer katalogowy : AP-AGPS-TMM-5VS
Producent: Trimble
Kod produktu: 66800-40

Trimble GPS Antenna Magnetic Mount, 5V, SMA(m), RG174/5m (66800-40)

TRIMBLE Omnidirectional antenna for GPS technology. The antenna operates in band 1545.72 MHz.

139.72 PLN (31.71 €) z VAT (23%) / szt.

bez VAT 115.47 PLN / szt.

Na magazynie < 10 szt.
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Trimble omnidirectional GPS antenna

Omnidirectional Trimble antenna for GPS technology. The antenna operates in band 1545.72 MHz. The antenna reaches up to 27 dBi gain when combined with an amplifier. The GPS antenna with a built-in magnet for placing on any metal substrate is ideal for example on the roof of the vehicle. It is suitable for the operation of navigation, tracking devices, electronic logbooks and other devices. The Trimble antenna can be used even in the harshest environments (-40 °C to +85 °C with high humidity). The antenna is supplied with a 5 m long RG174/U cable terminated with an SMA(m) connector.

Specifications connector SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.n can be found in the attached datasheet.


More information can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze SMA(m) Polaryzacja R.H.C.P.
Wykonanie Zewnętrzny Temperatura robocza -40 ~ +85  °C
Wymiary 37.4 x 34 x 12.9  mm Kierunkowość Dookólna
Technologia GPS Waga 25  g
Zysk 27  dBi Sposób mocowania Magnetyczne

139.72 PLN (31.71 €) z VAT (23%) / szt.

bez VAT 115.47 PLN / szt.
