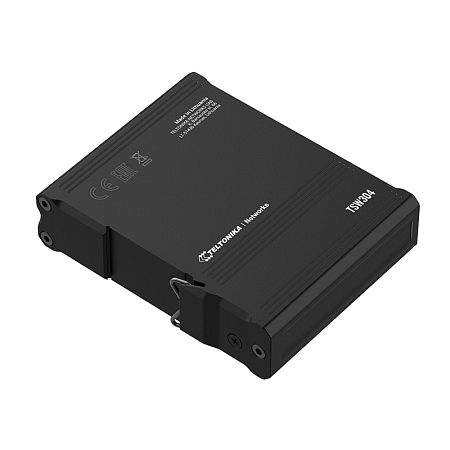

Teltonika unmanaged switch TSW304
Industrial unmanaged (non-configurable) Teltonika TSW304 switch is equipped with four Gigabit Ethernet ports supporting IEEE 802.3, IEEE 802.3u and 802.3az Ethernet standards with a data transfer rate of up to 1000 Mbps. The unmanaged switch Teltonika TSW304 with a fixed configuration simply allows devices with Ethernet to communicate with each other. No installation is required. Ethernet Switch Teltonika TSW304 has a built-in DIN rail holder. It has a durable aluminium case with an IP30 degree of protection. Thanks to its compact dimensions of 102 x 25 x 81.5 mm, it is suitable for applications with limited space.
Teltonika TSW304 is ideal for high-bandwidth professional applications where a reliable data connection is required.
Key Features Teltonika TSW304:
• 4 x Gigabit Ethernet with speeds up to 1000 Mbps, passive PoE
• Degree of protection IP30
• Input voltage range: 7 – 57 VDC; 9-40 VAC
• Operating temperature: -40 °C to 75 °C
• Durable Aluminum housing with built-in DIN rail holder
• Dimensions: 102 x 25 x 81.5 mm
• Weight: 210 g
Standard package contains:
• Ethernet Switch Teltonika TSW304
• QSG (Quick Start Guide)
For this switch TSW304 you can buy the Teltonika BAT120 backup power supply, which takes over the power supply of the router for up to 6 hours in the event of a power failure.
We recommend using the complete user manual and documents for configuration, official materials can be found here.
Quick Start Guide Video
The Quick Start Guide video guides you step-by-step through setting up the switch.
More information can be found in the attached datasheet and quick manual.
