Numer katalogowy : AM-88-OAPD12
Producent: SECTRON

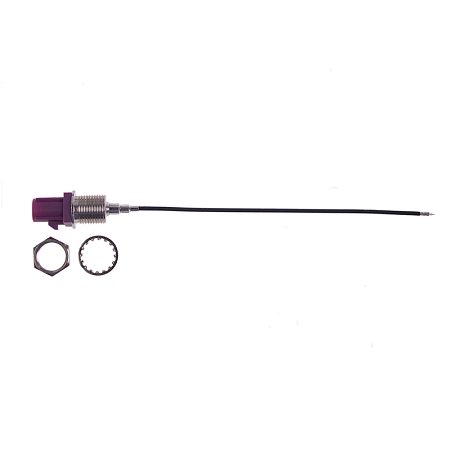

RF cable adaptor FAKRA(m)D/open-end, cable 1.37mm, 95mm visible part

Numer katalogowy : AM-88-OAPD12
Producent: SECTRON

RF cable adaptor FAKRA(m)D/open-end, cable 1.37mm, 95mm visible part

19.46 PLN (4.42 €) z VAT (23%) / szt.

bez VAT 16.08 PLN / szt.

Cena od 10 sztuk 3.32 €

Cena od 100 sztuk 2.99 €

Zapytani
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

RF cable adaptor FAKRA (m) C/open-end, cable 1.37mm

RF cable reducer (pigtail) series FAKRA (m) D screw, with LP-088 series cable and diameter of 1.37 mm. The adaptor is designed for the frequency range 0-6 GHz. The VSWR value in the entire operating frequency band is max. 1.2:1. You can select any second connector for this reduction.

Connecting and detaching FAKRA connectors is easy, guarantee of  25 cycles.

Cable reducers (pigtails) serve as extensions for connecting eg 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards, etc.

Parameters:

 Cable type LP-088: diameter 1.37 mm
• Cable length 95 mm, visible part
• Connector A: FAKRA (m) D screw.
• Connector B: optional
• Certification: RoHS
• Weight: 8.28 g


• Frequency range: Up to 6 GHz
• Impedance: 50 Ohm
• Insulation resistance: 5 000 M Ohm
• Max. VSWR: 1.2:1
• Operating temperature: -40 °C to +105 °C

Connector A - FAKRA

Use:

Fakra connectors in a plastic housing. These housings are available in 14 different colors for easy identification. The characteristic impedance of the connector is 50 Ohm, working frequency ranges up to 6 GHz, working temperature is from -40 °C to 105 °C. Fakra connectors are most often used in the automotive industry, for example for connecting antennas, radios, navigation. They are also widely used in M2M and IoT devices. Connecting and disconnecting Fakra connectors is easy, we guarantee up to 25 cycles.

Parameters:

• Frequency range: Up to 6 GHz
• Impedance: 50
VSWR <1.6:1
• Guaranteed number of connections before deformation: 25
• Operating temperature: -40 °C to +105 °C
• Certification: RoHS

Coaxial cable LP 088

Cable features:

The LP 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / FAKRA / FME / MHF / MCX / MMC / N / QMA / SMA / SMA-RP / SMB / SMP / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.

We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.

The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.
