Numer katalogowy : AW-A24G-W001MC
Producent: SECTRON

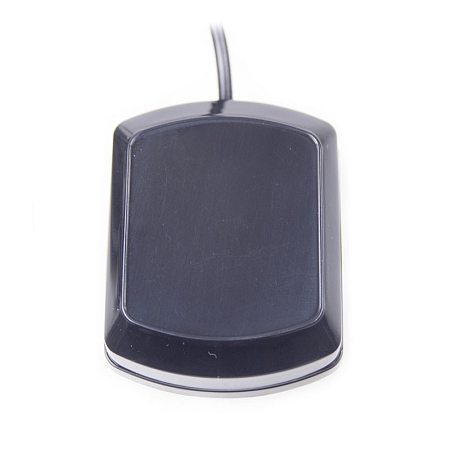

Antenna WiFi Magnet Mount W001, 2.4 GHz, MCX(m), RG174/3m, IP65/IP66

Numer katalogowy : AW-A24G-W001MC
Producent: SECTRON

Antenna WiFi Magnet Mount W001, 2.4 GHz, MCX(m), RG174/3m, IP65/IP66

Omnidirectional WiFi antenna operates in band 2.4 GHz and is suited for cellular routers.

45.27 PLN (10.29 €) z VAT (23%) / szt.

bez VAT 37.41 PLN / szt.

Na magazynie < 10 szt.
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Antenna WiFi Magnetic

Omnidirectional WiFi antenna operates in band 2.4 GHz and is suited for cellular routers. The built-in magnet allows placement on any metal substrate. Thanks to the degree of protection IP65 / IP66, it is also suitable for outdoor use. The antenna is supplied with a 3 m long RG174 / U cable, which is terminated with an MCX (m) connector.

Connector specifications MCX:

These are coaxial connectors with latch mechanism. Compatible with SMB connectors, but they are also 30% smaller than SMB connectors. The dimensions of the internal contact and the insulator are the same. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze MCX(m) Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -20 ~ +85  °C Wymiary 39.3 x 49.4 x 14.9  mm
Kierunkowość Dookólna Technologia Bluetooth , WiFi
Zysk 2  dBi VSWR <1.5:1
Sposób mocowania Magnetyczne Stopień ochrony IP IP66 , IP65
