Numer katalogowy : AW-A2458G-FPC71U110
Producent: SECTRON

Antenna WiFi Internal FLEX 71, 2.4/5 GHz, U.FL(f) RA, 1.37mm Coaxial Cable/110mm

Numer katalogowy : AW-A2458G-FPC71U110
Producent: SECTRON

Antenna WiFi Internal FLEX 71, 2.4/5 GHz, U.FL(f) RA, 1.37mm Coaxial Cable/110mm

Omnidirectional internal antenna with the gain of 3 dBi, working in 2.4/5 GHz band and is suited for receiving/transmitting Wi-Fi signal.

40.89 PLN (9.28 €) z VAT (23%) / szt.

bez VAT 33.79 PLN / szt.

Zapytani
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

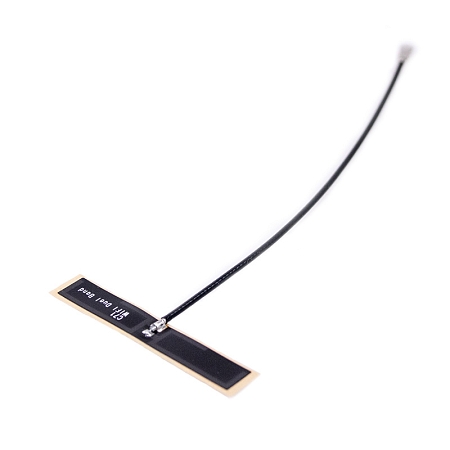

Omnidirectional Internal adhesive WLAN antenna

Omnidirectional internal antenna with the gain of 2/3 dBi, working in 2.4/5 GHz band and is suited for receiving/transmitting Wi-Fi signal. The antenna is suited for devices that support WLAN technology. The antenna is supplied with 110mm cables with U.FL(f) 90° connector. Double-sided 3M tape ensures easy antenna mounting.

Specifications connector U.FL:

U.FL connectors are used in cases where there is very little space for connecting / interconnecting RF components eg in wireless communication devices, electronic measuring instruments, mobile phones, GPS and wireless LANs. Gold-plated central contact of the U.FL connector improves its properties. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz.

Cable specifications LP-088:

The HLP-088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.


Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RF 1.37
Złącze U.FL(f) R/A Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Wewnętrzny
Temperatura robocza -30 ~ +90  °C Wymiary 42 x 7 x 0.15  mm
Kierunkowość Kierunkowa Technologia WiFi
Waga 0.61  g Zysk 3  dBi
VSWR <2.5:1 Sposób mocowania Przyklejana

40.89 PLN (9.28 €) z VAT (23%) / szt.

bez VAT 33.79 PLN / szt.
