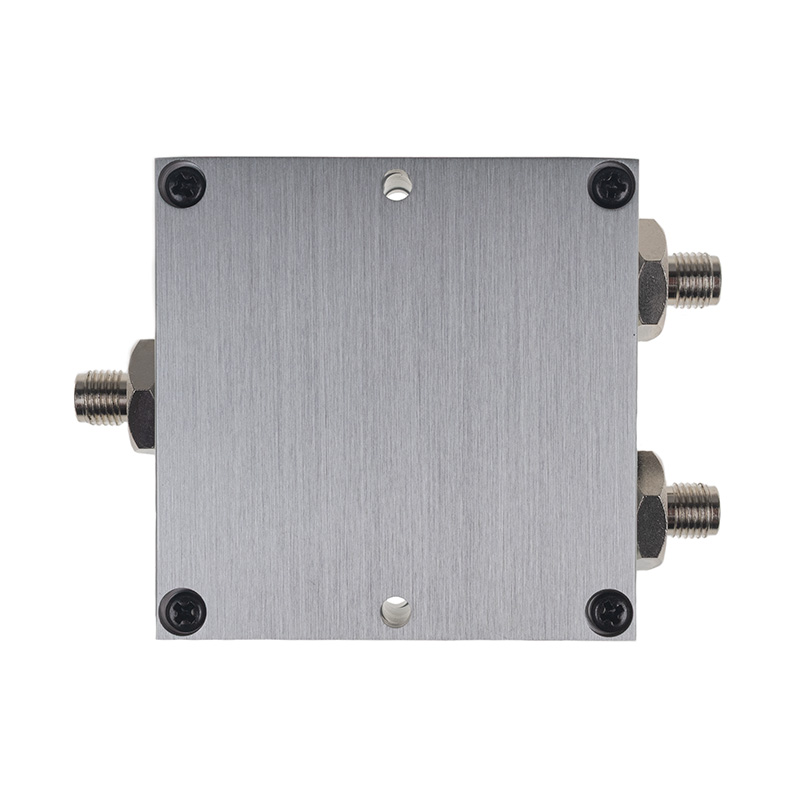

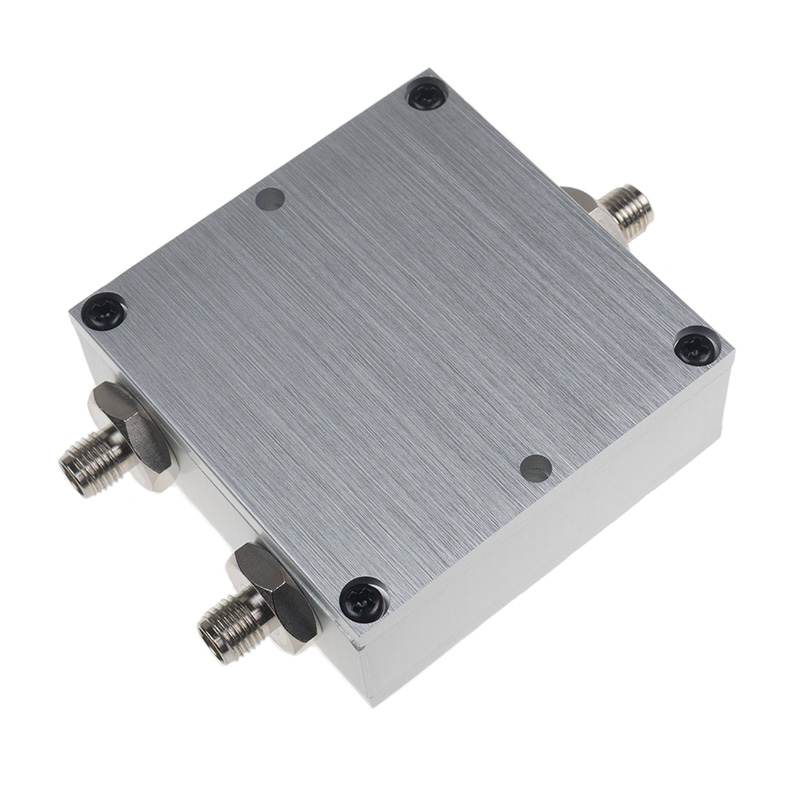

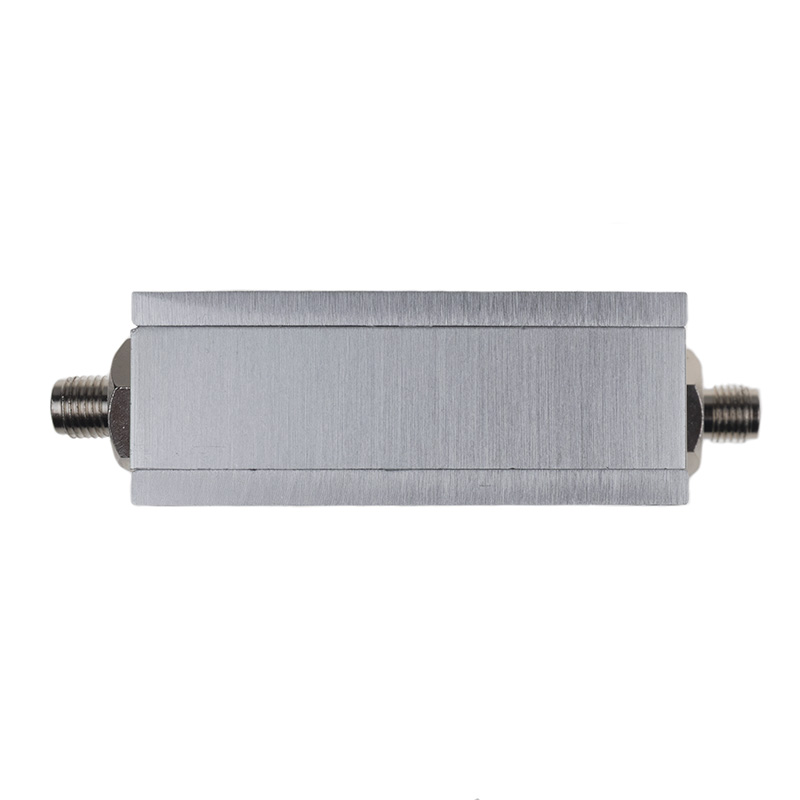

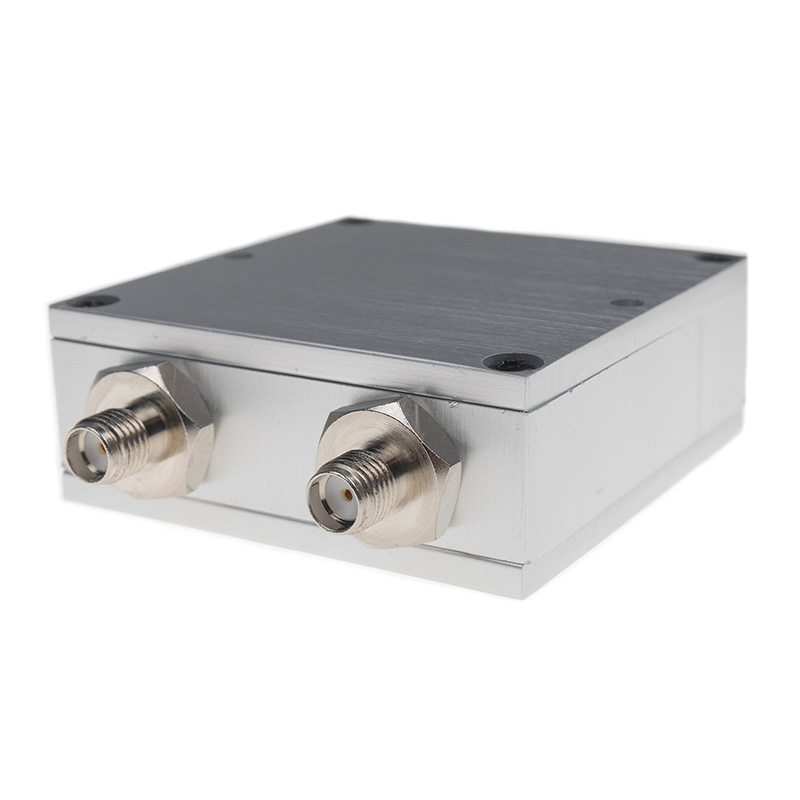

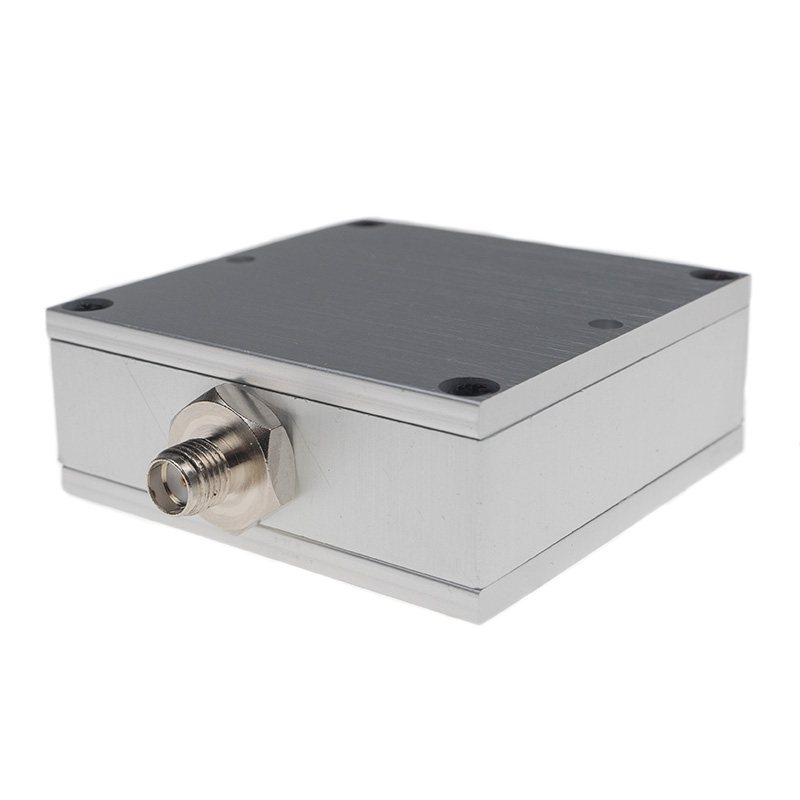

Splitter Coupler (690-2700 MHz) with 2 outputs
A splitter with a frequency range of 600-2700 MHz is a device that allows one input to receive signals and split them into two outputs.
The splitter (600-2700 MHz) with two outputs has a wide range of possible uses in different areas of wireless communication, where the signal is divided between two antennas, which improves coverage and reduces possible interference. The broadband splitter with four outputs is equipped with SMA (f) type connectors.
Features:
• Frequency range: 600 - 2700 MHz
• Connector type: SMA
• Impedance: 50 Ohm
• Number of inputs: 1
• Number of outputs: 2
• Operating temperature: -40°C to +90°C
• Dimensions: 20 × 51 × 51 mm
• Low insertion losses
Specifications connector SMA:
These are high-frequency connectors with screw connection mechanisms. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.
