Numer katalogowy : AO-ALTE-OM56
Producent: SECTRON

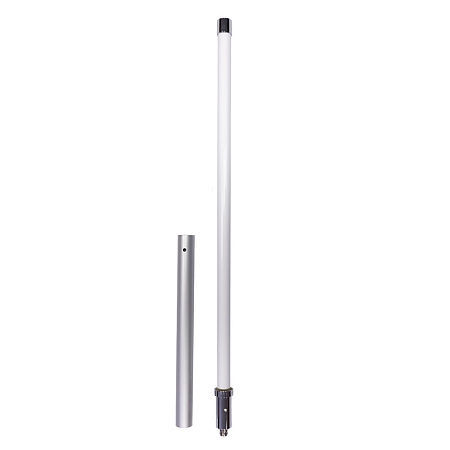

Antenna LTE OMNI Pole Mount OM56, 690-2700 MHz, 5 dBi, N(f)

Numer katalogowy : AO-ALTE-OM56
Producent: SECTRON

Antenna LTE OMNI Pole Mount OM56, 690-2700 MHz, 5 dBi, N(f)

Omnidirectional antenna for GSM/UMTS/LTE technologies.

535.42 PLN (121.64 €) z VAT (23%) / szt.

bez VAT 442.49 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Antenna LTE/UMTS/GSM OMNI OM56

Omnidirectional antenna for GSM/UMTS/LTE technologies. The antenna operates in frequency bands 690/800/900/1700/1800/1900/2100/2500/2600/2700 MHz.Thanks to its precise construction, this antenna has excellent weather resistance which makes it suitable for outdoor installations, can be used as a GSM outdoor antenna.

The package contains a holder that ensures a firm and stable attachment of the antenna.

Connector specifications N:

Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. Temperature range is -65 °C to +165 °C. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel N/A
Złącze N(f) Maksymalna moc wejściowa 50  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -30 ~ +90  °C Wymiary 35.26 x 756  mm
Kierunkowość Dookólna Technologia GSM , UMTS , LTE
Waga 630  g Zysk 5  dBi
VSWR <3.0:1 Kąt nadawania H 360 V 30
Sposób mocowania Stožárová

535.42 PLN (121.64 €) z VAT (23%) / szt.

bez VAT 442.49 PLN / szt.
