Numer katalogowy : AO-ALTE-W9S
Producent: SECTRON

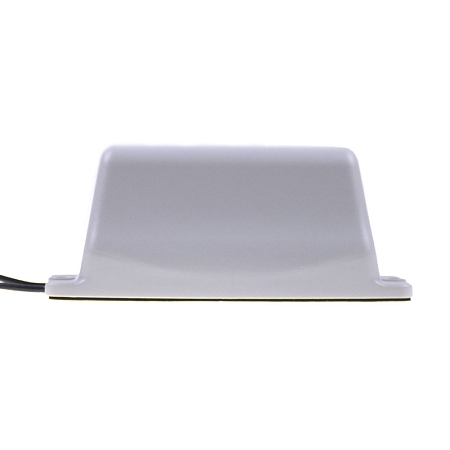

Antenna LTE Ceiling Mount W9, SMA(m), RG316/1.5m

Numer katalogowy : AO-ALTE-W9S
Producent: SECTRON

Antenna LTE Ceiling Mount W9, SMA(m), RG316/1.5m

Omnidirectional indoor ceiling antenna designed for receiving and transmitting GSM/UMTS/LTE signal. The antenna operates in bands 800/900/1700/1800/1900/2100/2400/2500/2600/2700 MHz.

153.10 PLN (34.75 €) z VAT (23%) / szt.

bez VAT 126.53 PLN / szt.

Na magazynie < 10 szt.
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional GSM/UMTS/LTE antenna

Omnidirectional indoor ceiling antenna designed for receiving and transmitting GSM/UMTS/LTE signal. The antenna operates in bands 800/900/1700/1800/1900/2100/2400/2500/2600/2700 MHz. It is often used as part of GSM/UMTS/LTE signal repeaters. A coaxial RG316 cable with a length of 1.5 m is attached to the antenna, which is terminated with SMA (m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG316:

RG316 coaxial low-loss high-frequency cable that is compatible with connectors applicable to a cable with the outer diameter of 2.49 mm. The frequency range is 0 - 3 GHz. The RG316 cable is often used in radio frequency and telecommunication applications, for the transmission of high frequency signals, and also in wireless devices. It is suitable for applications that require good performance and stability in high temperature environments. The operating temperature of this cable is -55 to + 200 ° C. The shortening factor is set to 0.7. There are also specially modified RG316 for outdoor use, which are UV resistant, as well as for use in extreme conditions. It is made of different materials and different qualities.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG316/U
Złącze SMA(m) Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -20 ~ +60  °C Wymiary 136 x 55 x 47  mm
Kierunkowość Dookólna Technologia GSM , UMTS , LTE
Waga 93.39  g Zysk 1.3  dBi
VSWR <2.0:1 Kąt nadawania H 360 V 30
Sposób mocowania Przyklejana

153.10 PLN (34.75 €) z VAT (23%) / szt.

bez VAT 126.53 PLN / szt.
