Numer katalogowy : AO-ALTE-SA5S
Producent: SECTRON

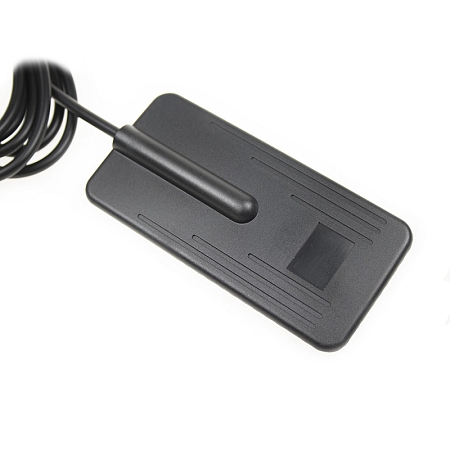

Antenna LTE Adhesive SA5, 5 dBi, SMA(m), RG58/3m

Numer katalogowy : AO-ALTE-SA5S
Producent: SECTRON

Antenna LTE Adhesive SA5, 5 dBi, SMA(m), RG58/3m

Omnidirectional antenna for GSM/UMTS/LTE signal reception. The antenna operates in 800/900/1700/1800/1900/2100/2400/2500/2600/2700 MHz bands.

45.91 PLN (10.43 €) z VAT (23%) / szt.

bez VAT 37.94 PLN / szt.

Zapytani
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional GSM/UMTS/LTE antenna

Omnidirectional antenna for GSM/UMTS/LTE signal reception. The antenna operates in 800/900/1700/1800/1900/2100/2400/2500/2600/2700 MHz bands. Used in vehicles to connect to cellular modems and routers or signal repeaters. The antenna is suitable for sticking to glass. It comes with 3M sticker for easy assembly. The antenna is supplied with 3m cable RG58 with SMA(m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG58:

The RG58 coaxial cable is compatible with connectors applicable to a 5 mm cable diameter. It is mainly used for the 0-1 GHz frequency range, it can also be used for higher frequencies, but at the cost of higher attenuation. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 75 ° C. This cable is suitable for external WiFi / GPS / GSM antennas. It is also often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / N / SMA / TNC and others.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG58/U
Złącze SMA(m) Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -30 ~ +80  °C Wymiary 115 x 56 x 9.7  mm
Kierunkowość Dookólna Technologia GSM , UMTS , LTE
Waga 129.18  g Zysk 5  dBi
VSWR <2.0:1 Kąt nadawania H 360 V 30
Sposób mocowania Przyklejana

45.91 PLN (10.43 €) z VAT (23%) / szt.

bez VAT 37.94 PLN / szt.
