Numer katalogowy : AO-AGSM-MG9-174
Producent: SECTRON

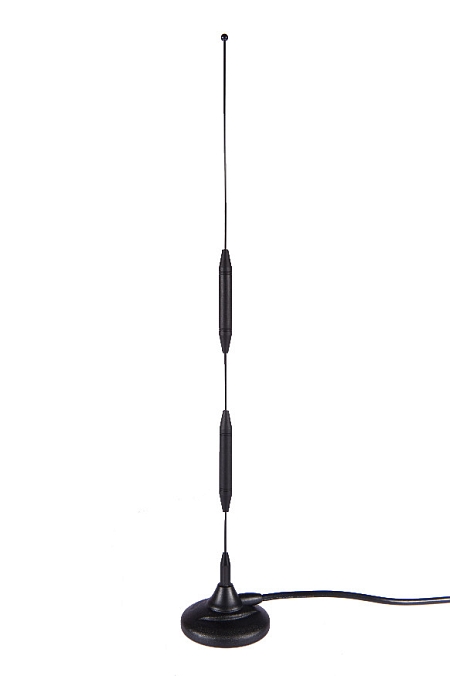

Antenna GSM/UMTS Magnet Mount 90/open, 9dBi, RG174/5m

Numer katalogowy : AO-AGSM-MG9-174
Producent: SECTRON

Antenna GSM/UMTS Magnet Mount 90/open, 9dBi, RG174/5m

Omnidirectional antenna designed with open end for signal reception in GSM/UMTS technologies. The antenna operates in bands 900/1800/2100 MHz.

45.91 PLN (10.43 €) z VAT (23%) / szt.

bez VAT 37.94 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional GSM/UMTS antenna, RG58, optional connector

Omnidirectional antenna designed with open end for signal reception in GSM/UMTS technologies. The antenna operates in bands 900/1800/2100 MHz. It is suitable for connection with modems/routers. With a suitable location on the grounding metal surface, the antenna reaches a gain up to 9 dBi and is also suitable for outdoor use. The antenna includes a coaxial cable RG174/U open-end  (optional connector). The cable length is 5 m.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.


Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze bez złącza Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -30 ~ +80  °C Wymiary 68 x 448  mm
Kierunkowość Dookólna Technologia GSM , UMTS
Waga 225  g Zysk 9  dBi
VSWR <1.8:1 Kąt nadawania H 360 V 30
Sposób mocowania Magnetyczne

45.91 PLN (10.43 €) z VAT (23%) / szt.

bez VAT 37.94 PLN / szt.
