Numer katalogowy : AO-AG-FPC14U150
Producent: SECTRON

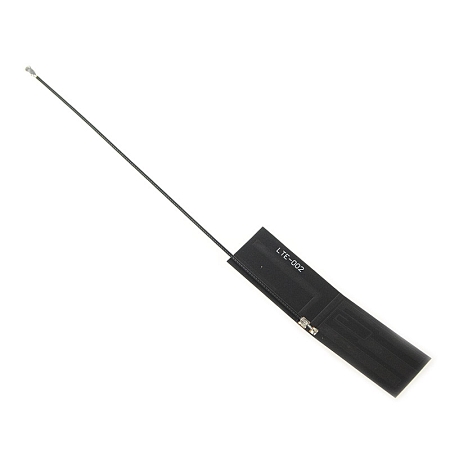

Antenna GSM/UMTS Flexible hexa-band, 70x20x0.1, U.FL088 150mm

Numer katalogowy : AO-AG-FPC14U150
Producent: SECTRON

Antenna GSM/UMTS Flexible hexa-band, 70x20x0.1, U.FL088 150mm

Omnidirectional adhesive antenna is suitable for usage with GSM/UMTS technologies. The antenna operates on 850/900/1700/1800/1900/2100 MHz frequency.

26.81 PLN (6.09 €) z VAT (23%) / szt.

bez VAT 22.16 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional internal GSM/UMTS antenna

Omnidirectional internal antenna is suitable for usage with GSM/UMTS technologies. The antenna operates on 850/900/1700/1800/1900/2100 MHz frequency. It is suited for modems and routers. It comes with a 150mm cable terminated with a U.FL connector and double-sided 3M tape for easy assembly.

Connector specifications U.FL:

U.FL connectors are used in cases where there is very little space for connecting / interconnecting RF components eg in wireless communication devices, electronic measuring instruments, mobile phones, GPS and wireless LANs. Gold-plated central contact of the U.FL connector improves its properties. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz.

Cable specifications Hirose 088:

The Hirose 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.


Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RF 1.37
Złącze U.FL(f) R/A Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Wewnętrzny
Temperatura robocza -20 ~ +80  °C Wymiary 70 x 20 x 0.1  mm
Kierunkowość Dookólna Technologia GSM , UMTS
Waga 1.22  g Zysk 2  dBi
VSWR <2.0:1 Kąt nadawania H 360 V 30
Sposób mocowania Przyklejana

26.81 PLN (6.09 €) z VAT (23%) / szt.

bez VAT 22.16 PLN / szt.
