Numer katalogowy : AO-AUMTS-G107S
Producent: SECTRON

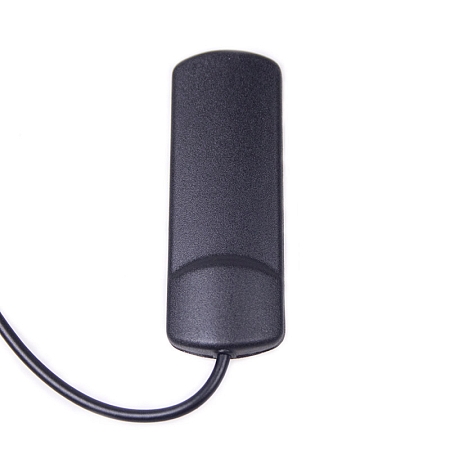

Antenna GSM/UMTS Adhesive G107, 2 dBi, SMA(m), RG174/3m

Numer katalogowy : AO-AUMTS-G107S
Producent: SECTRON

Antenna GSM/UMTS Adhesive G107, 2 dBi, SMA(m), RG174/3m

Omnidirectional antenna for GSM/UMTS signal reception. The antenna operates in 800/900/1700/1800/1900/2100 MHz bands.

23.65 PLN (5.37 €) z VAT (23%) / szt.

bez VAT 19.54 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional antenna for GSM/UMTS

Omnidirectional antenna for GSM/UMTS signal reception. The antenna operates in 800/900/1700/1800/1900/2100 MHz bands. Used in vehicles to connect to cellular modems and routers or signal repeaters. The antenna is suitable for sticking to the glass. It is supplied with a 3 m RG174 / U cable, with an SMA (m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.


Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze SMA(m) Maksymalna moc wejściowa 10  W
Polaryzacja Liniowy Wykonanie Zewnętrzny
Temperatura robocza -40 ~ +85  °C Wymiary 72.2 x 25 x 6.6  mm
Kierunkowość Dookólna Technologia GSM , UMTS
Waga 48.8  g Zysk 2  dBi
VSWR <2.0:1 Kąt nadawania H 360 V 30
Sposób mocowania Przyklejana

23.65 PLN (5.37 €) z VAT (23%) / szt.

bez VAT 19.54 PLN / szt.
