Numer katalogowy : AO-AKOM-CAPSS
Producent: SECTRON

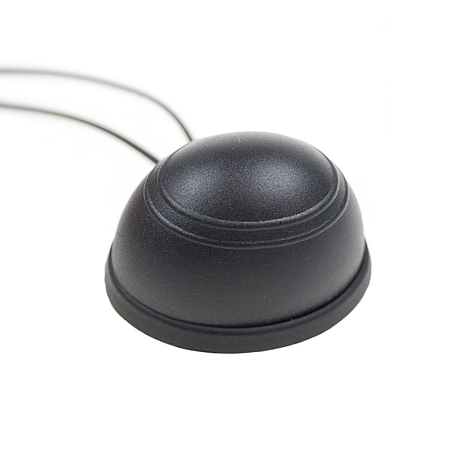

Antenna GSM/GPS Screw Mount CAP, SMA/SMA, RG174/5m

Numer katalogowy : AO-AKOM-CAPSS
Producent: SECTRON

Antenna GSM/GPS Screw Mount CAP, SMA/SMA, RG174/5m

Omnidirectional antenna for technologies GSM/GPS. The antenna operates in bands 800/900/1575.42/1800/1900 MHz.

229.44 PLN (52.13 €) z VAT (23%) / szt.

bez VAT 189.62 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Omnidirectional GSM/GPS antenna

Omnidirectional combined antenna for technologies GSM/GPS. The antenna operates in bands 800/900/1575.42/1800/1900 MHz, reaches up to 27 dBi gain when combined with an amplifier in bands GPS and is supplied with two 5m cables with two SMA (m) connectors. It is suitable for use in cars and other means of transport. Here it is used for navigations, tracking systems and other devices.

Cable specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174/U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.


Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze SMA(m) Maksymalna moc wejściowa 10  W
Polaryzacja R.H.C.P. , Liniowy Wykonanie Zewnętrzny
Temperatura robocza -40 ~ +85  °C Wymiary 30 x 53 x 38  mm
Kierunkowość Dookólna Technologia GSM , GPS
Waga 172.17  g Zysk 0  dBi , 27  dBi
VSWR <2.0:1 Kąt nadawania H 300 V 75
Sposób mocowania Śrubowe
