Numer katalogowy : AP-AGPS-56T
Producent: SECTRON

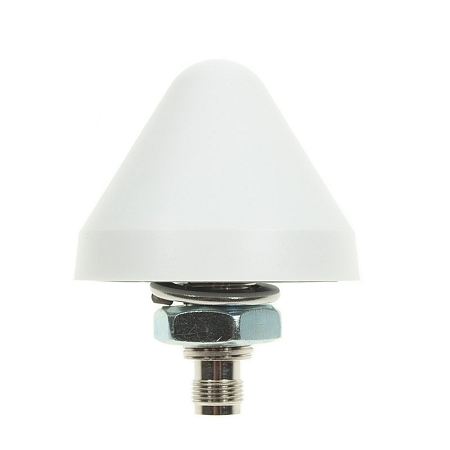

Antenna GPS Screw Mount Marine, 45 dBi, TNC(f)

Numer katalogowy : AP-AGPS-56T
Producent: SECTRON

Antenna GPS Screw Mount Marine, 45 dBi, TNC(f)

Mount Marine active antenna is designed to receive signal for GPS technology. Works in the 1575.42 MHz band. In combination with an amplifier, this active antenna achieves up to 45 dBi of total gain.

181.67 PLN (41.24 €) z VAT (23%) / szt.

bez VAT 150.14 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

Mount Marine active GPS antenna

Mount Marine active antenna is designed to receive signal for GPS technology. Works in the 1575.42 MHz band. In combination with an amplifier, this active antenna achieves up to 45 dBi of total gain. The antenna is highly resistant to harsh weather conditions. Thanks to IP67, this antenna is suitable for the outdoor use. It has an TNC(f) connector.

Connector specifications TNC:

TNC coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 11 GHz. TNC connectors are used, for example, to connect wireless WLAN devices, test equipment and GSM / GPS / Wi-Fi antennas.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Złącze TNC(f)
Napięcie 5.5 V DC Polaryzacja R.H.C.P.
Wykonanie Zewnętrzny Temperatura robocza -40 ~ +80  °C
Wymiary 72 x 59  mm Kierunkowość Kierunkowa
Technologia GPS Zysk 1.5  dBi
VSWR <1.46:1 LNA Zysk 45.21  dB
Sposób mocowania Śrubowe Orzecznictwo RoHS , ISO 9001 , ISO 14001
Stopień ochrony IP IP67

181.67 PLN (41.24 €) z VAT (23%) / szt.

bez VAT 150.14 PLN / szt.
