Numer katalogowy : AO-AKOM-B046LMS
Producent: SECTRON

Antenna 2LTE/GPS Screw Mount B046LM, 3x SMA(m), 3x RG174/3m, IP67

Numer katalogowy : AO-AKOM-B046LMS
Producent: SECTRON

Antenna 2LTE/GPS Screw Mount B046LM, 3x SMA(m), 3x RG174/3m, IP67

Combined antenna suitable for LTE/GPS signal receival. The antenna functions in the bands of 698‐960MHz;1710‐2690/1575.42 MHz.

130.07 PLN (29.52 €) z VAT (23%) / szt.

bez VAT 107.49 PLN / szt.

Na magazynie
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

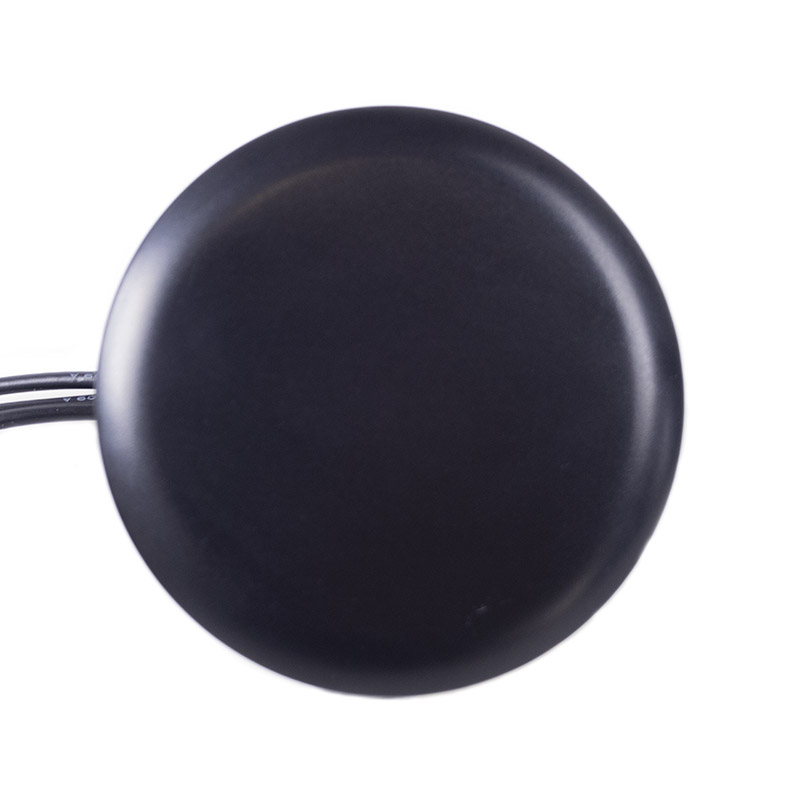

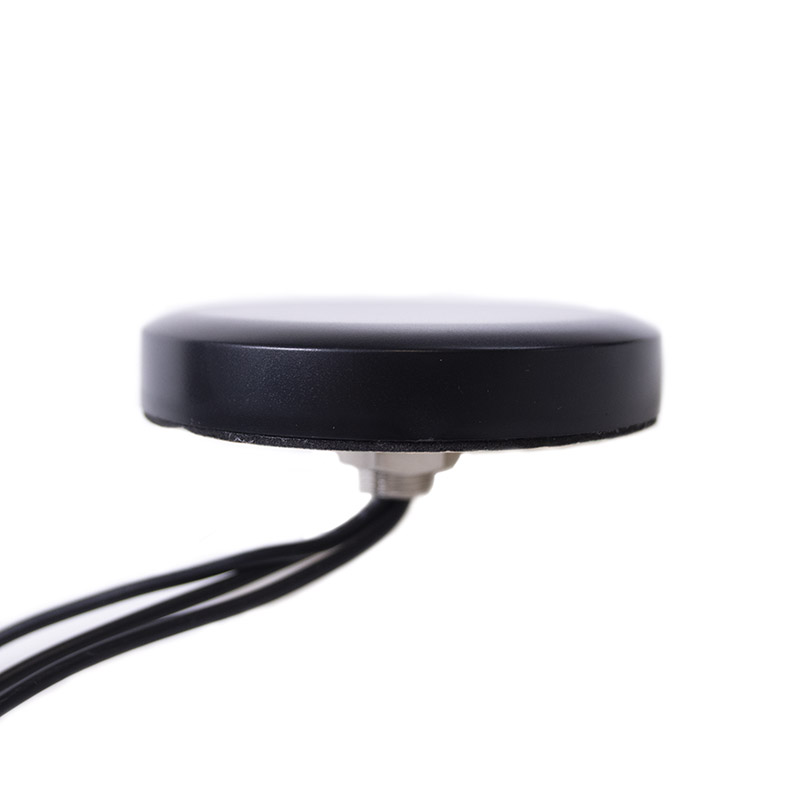

Combined LTE/GPS antenna

Combined antenna suitable for LTE/GPS signal receival. The antenna functions in the bands of 698‐960MHz;1710‐2690/1575.42 MHz. In combination with amplifier its gain is around 30 dBi. This antenna can be used in navigation systems or applications for vehicle location, fleet management. Thanks to IP67, this antenna is suitable for outdoor use. The antenna is supplied with three RG174 cables with a length of 3 m, terminated with SMA (m) connectors.

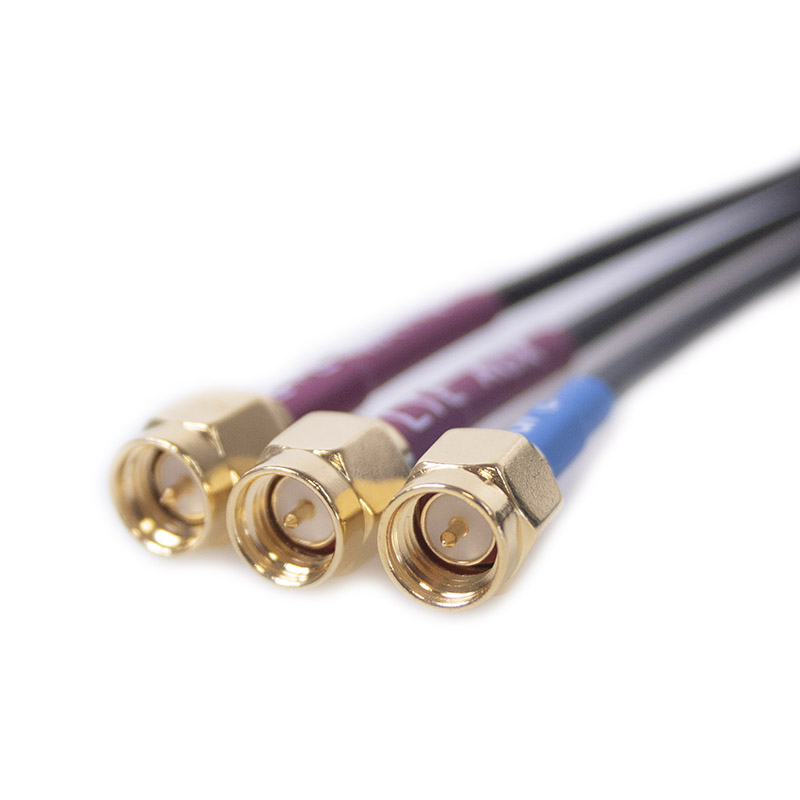

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parametry

Impedance 50  Ohm Kabel RG174/U
Złącze SMA(m) Maksymalna moc wejściowa 10  W
Napięcie 3.0 V - 5 V DC Polaryzacja Liniowy , R.H.C.P
Wykonanie Zewnętrzny Temperatura robocza -40 ~ +85  °C
Wymiary 81.3 x 29.6  mm Kierunkowość Dookólna , Směrová
Technologia GPS , LTE Waga 200.39  g
Zysk 2.5  dBi , 2  dBi , 0  dBi VSWR <2.0:1 , <1.5:1

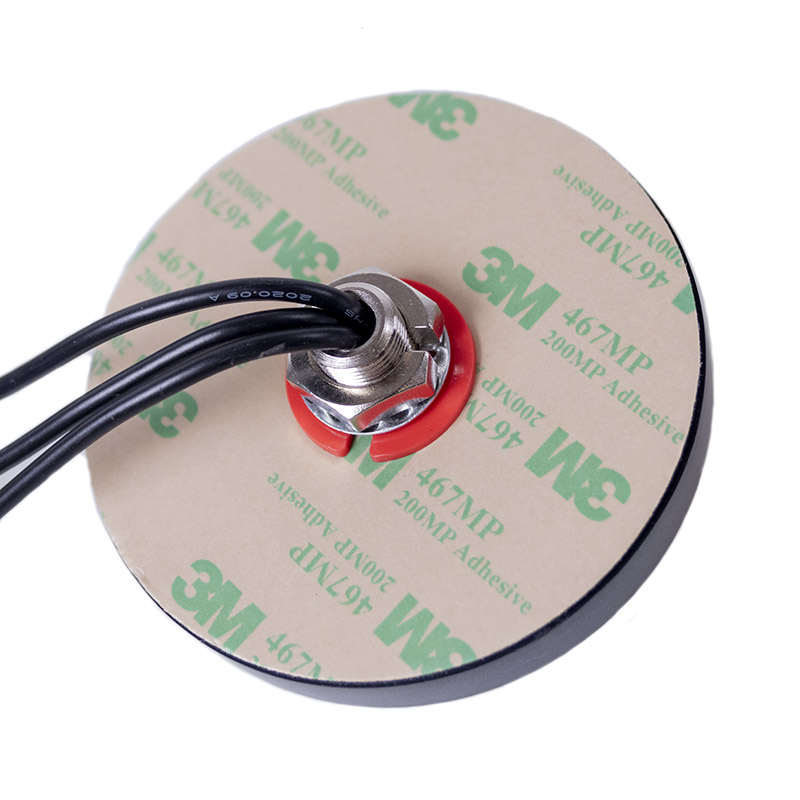

LNA Zysk 30  dB Sposób mocowania Śrubowe
Orzecznictwo RoHS , ISO 9001 , ISO 14001 Stopień ochrony IP IP67
Materiał ABS
